Sunflo P 3400 Industrial Grade Pump

The P-3400 is an integrally geared pump that is capable of generating high pressure quickly for plant operators who require on demand liquids for wash down, boiler feed, reverse osmosis or mineral processing. Sunflo pumps utilize high-speed to keep the motor size low resulting in energy savings and increased efficiency.

  • Flows to 550 gpm (125 m³/hr)
  • Heads to 5,280 ft (1,585 m)

The P-3400 is designed to deliver maximized up-time, reduced maintenance costs and optimized productivity over the lifecycle of the unit. Sunflo pumps are simple to maintain and can be overhauled in minutes without having to remove the pump casing from the baseplate.

Proven to be reliable, cost effective and easy to maintain, Sunflo industrial grade pumps provide a number of operational benefits:

  • Single stage, integrally geared pump
  • Maintain with a shaft and impeller insert
  • Operator does not need to stock spare pumps
  • Maximized up time
  • Saves space-25% the size of competing horizontal pumps
  • Start and stop the pumps quickly for on demand water operations
  • Generates high pressure quickly for water applications

US 60 Hz

  • Heads to                                                  5,280 ft
  • Flows to                                                   550 gpm
  • Maximum Motor Power                           400 HP
  • Temperature Range                                -50 to 350°F
  • Maximum Case Working Pressure          2,160 psi
  • Maximum Suction Pressure                     350 psi
  • Maximum Viscosity                                  10 cp
  • Solids Range                                           0.015″, 400 microns
  • Mounting Configuration                           Frame Mounted
  • Seal Configurations                                 Single, Double
  • Available Inducer                                    Yes
  • Available Flanges                           600# RF, 900# RF
  • Suction and Discharge Sizes       3″ x 2″ and 4″ x 3″
  • Seal Plans                11, 13, 21, 23, 31, 32, 41, 53

Metric 50 Hz

  • Heads to                                                  1,585 m
  • Flows to                                                   125 m3/hr
  • Maximum Motor Power                           293 kW
  • Temperature Range                                -46 to 177°C
  • Maximum Case Working Pressure         152 kg/cm2
  • Maximum Suction Pressure                     25 kg/cm²
  • Maximum Viscosity                                 10 cp
  • Solids Range                                           0.381mm, 400 microns
  • Mounting Configuration                           Frame Mounted
  • Seal Configurations                                 Single, Double
  • Available Inducer                                    Yes
  • Available Flanges                           600# RF, 900# RF
  • Suction and Discharge Sizes       3″ x 2″ and 4″ x 3″
  • Seal Plans                11, 13, 21, 23, 31, 32, 41, 53
  • 316 Stainless Steel (Duplex SS)
  • Hastelloy
  • AISI 4140/8620/9310 Steel
  • Aluminum
  • Cast Steel
Sunflo P3400 Pump Performance Envelope-60Hz

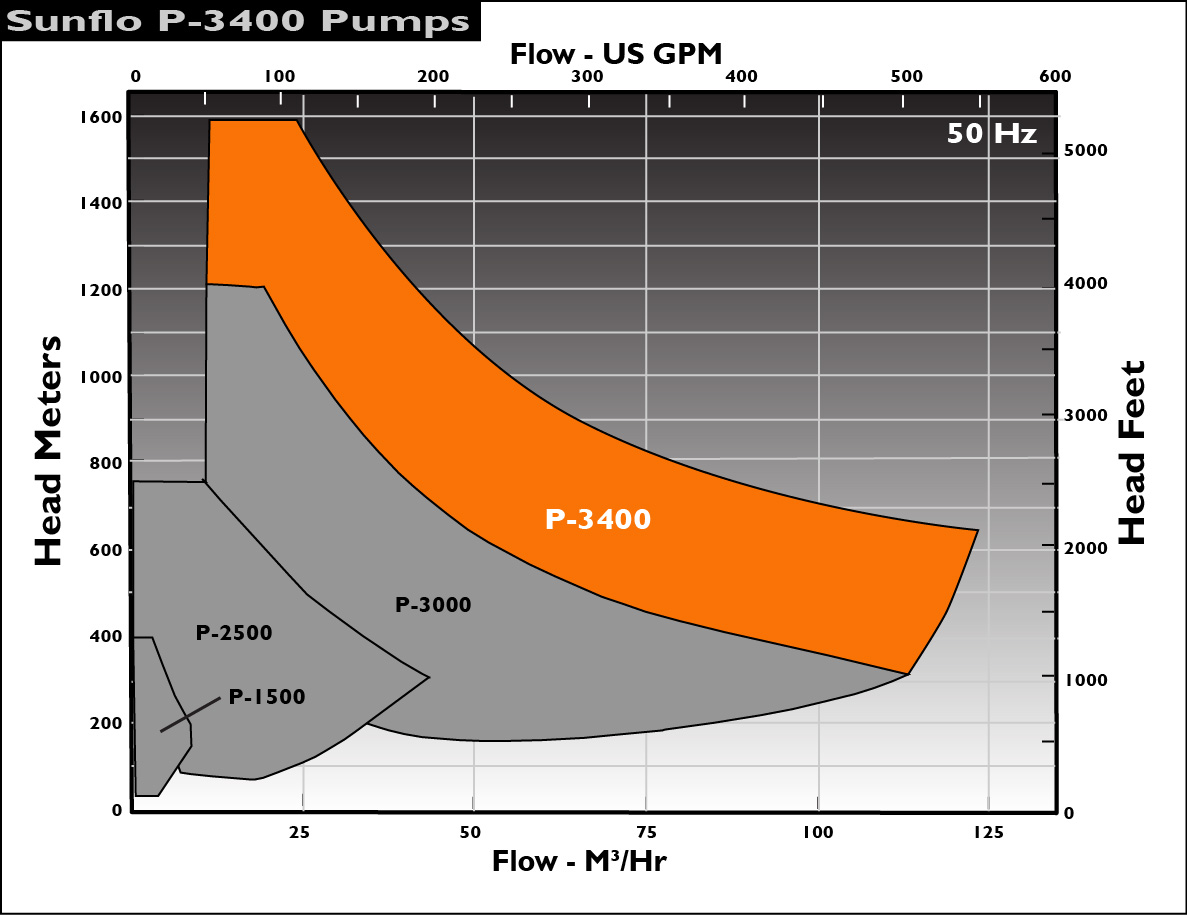

Sunflo P3400 Pump Performance Envelope-50Hz
