ANSIMAG Sealless Magnetic Drive ETFE Lined Pumps for Safe Chemical Processing—Simple by Design

ANSIMAG sealless magnetic drive ETFE lined pumps are specifically designed for plant managers and process engineers who demand reliable and safe pumps for chemical processing and downstream refining applications.

All wetted parts are molded ETFE components that can safely handle a wide range of corrosives and solvents up to 250°F (121°C) without corrosion.  A patented, fully encapsulated magnetic drive hermetically seals the inner magnets to isolate them from process fluid and maintain magnet integrity for the life of the pump.  A Kevlar-fiber reinforced vinyl ester shell delivers unprecedented reliability.

ANSIMAG sealless magnetic drive pumps are more energy-efficient than mechanically sealed pumps.  An innovative rear casing generates no eddy currents thus eliminating heat generation and reducing energy costs.  Because ANSIMAG pumps do not have seals – there are no leaks, no emissions and no costs related to seal maintenance.

ANSIMAG pumps provide affordable replacement options for aging ASME/ANSI B73.3 and ISO 2858 sized pumps, because the line covers a wide range of sizes and standard external dimensions to facilitate sealless or sealed pump replacement without changing piping or baseplates.

Ansimag

Common ANSIMAG Pump Applications

Chemical Processing

  • Chlor-Alkali
  • Agricultural Chemical
  • Fertilizer

Hydrocarbon Processing

  • Downstream Refining
  • Downstream Petrochemical

Upstream Oil and Gas

  • LACT
  • Produced Water

Power and Industrial

  • Aquatic and Marine
  • Battery
  • Biofuels
  • Food and Beverage
  • Mining
  • Pharmaceutical
  • Pulp and Paper
  • Semiconductor
  • Steel Finishing, Pickling
  • Water and Wastewater Treatment
Ansimag Sealless-Magnetic-Drive-Pump

ANSIMAG K+ Sealless Magnetic Drive ETFE Lined Pump



  • Flows to 675 gpm (125 m³/hr)
  • Heads to 320 ft (67 m)
  • Maximum Power 30 HP, 22 kW
  • Minimum NPSH
  • Temperature Range -20 to 250°F (-30 to 120°C)

ANSIMAG KM Sealless Magnetic Drive ETFE Lined Pump



  • Flows to 147 gpm (27 m³/hr)
  • Heads to 140 ft (30m)
  • Maximum Power 7.5 HP, 5.5 kW
  • Temperature Range -20 to 250°F (-29 to 121°C)

ANSIMAG KMLF Low Flow Sealless Magnetic Drive ETFE Lined Pumps



  • Flows to 40 gpm (9 m³/hr)
  • Heads to 170 ft (52 m)
  • Maximum Power 7.5 HP, 5.5 kW
  • Temperature Range -20 to 250°F (-29 to 121°C)

ANSIMAG KF Sealless Magnetic Drive ETFE Lined Pump



  • Flows to 1,470 gpm (275 m³/hr)
  • Heads to 520 ft (110 m)
  • Maximum Power 100 HP, 75 kW
  • Temperature Range -20 to 250°F (-30 to 120°C)
ANSIMAG KV Sealless Magnetic Drive Pump

ANSIMAG KV Vertical Sealless Magnetic Drive ETFE Lined Pump



  • Flows to 325 gpm (59 m³/hr)
  • Heads to 325 ft (69 m)
  • Maximum Power 30 HP, 22 kW
  • Temperature Range -20 to 250°F (-30 to 120°C)
Sealless Drive Pump

ANSIMAG KP Self Priming Sealless Magnetic Drive ETFE Lined Pumps



  • Flows to 285 gpm (52 m³/hr)
  • Heads to 150 ft (32 m)
  • Maximum Power 30 HP, 22 kW
  • Temperature Range -20 to 250°F (-30 to 120°C)

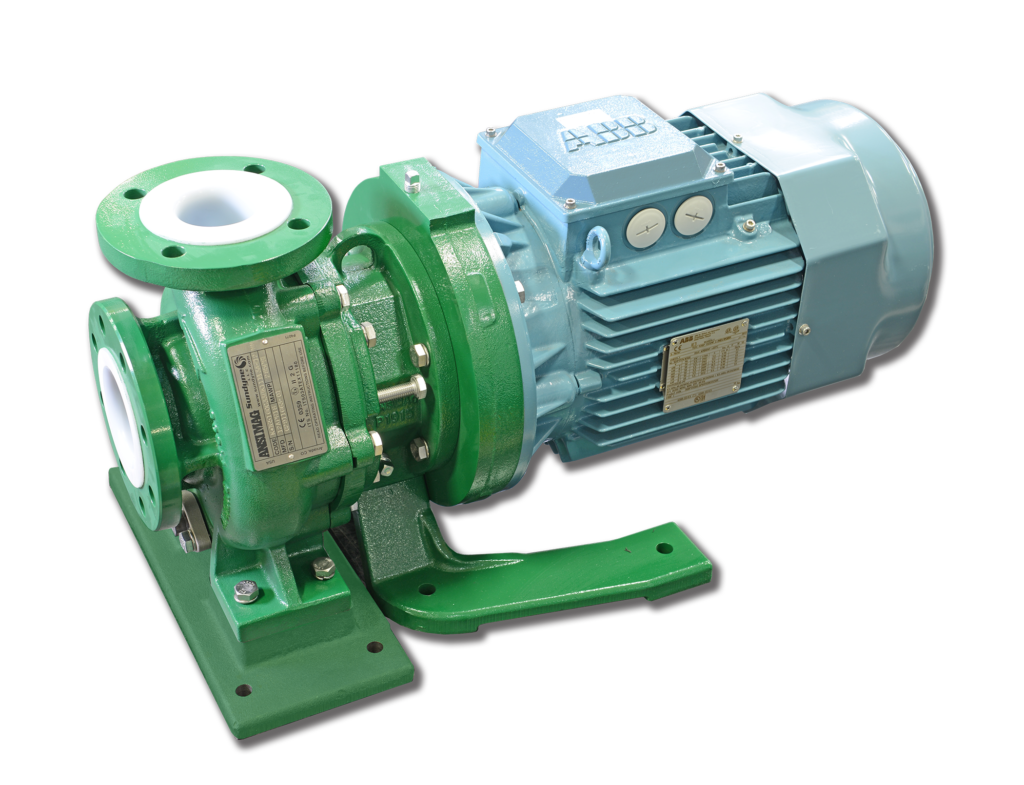

Ansimag ALI ISO Chemical Pump

ANSIMAG ALI (ISO) Sealless Magnetic Drive ETFE Lined Pump



  • Flows to 150 m³/hr
  • Heads to 105 m
  • Maximum Power 75 kW
  • Temperature Range -29 to 121°C
