Sundyne Direct Drive Pumps

API 610, OH3 and OH5 direct drive reliable space saving process pumps for hydrocarbon and chemical processing, upstream and midstream Industries.

Each pump in the series features a single-stage centrifugal design with single, double or tandem seal arrangements as well as select API 682 cartridge seal configurations for reliable service in the most difficult applications.

The Sundyne API 610, direct drive family of pumps are vertical inline, single stage, overhung pumps that are either a close coupled design (OH5) or they feature a separate bearing bracket (OH3) with a flexible shaft coupling to accommodate multiple motor options.  Each Sundyne direct drive pump is designed specifically to handle hydrocarbon processing and chemical production applications and maximize reliability and tolerance to normal system variations.

Common Sundyne OH3 and OH5 Pump Applications in Hydrocarbon Processing

  • Acid Feed
  • Acid Recirculation
  • Olefin Charge
  • Depropanizer Charge
  • Polypropylene Feed
  • Reflux
  • Overhead
  • Sour Water
  • Wash Down
  • Bottoms
Sundyne LMV 801 Direct Drive Pump

LMV 801 Direct Drive Pump



  • Flows to 380 gpm (86 m³/hr)
  • Heads to 720 ft (220 m)
  • Maximum Power 100 HP, 75 kW
  • Maximum Suction Pressure 1,000 psi, (71kg/cm²)
  • Minimum NPSH
  • Temperature Range -200 to 650°F (-130 to 340°C)

LMV 801CS Cartridge Seal Direct Drive Pump



  • Flows to 380 gpm (86 m³/hr)
  • Heads to 720 ft (219m)
  • Maximum Power 75 HP, 55kW
  • Maximum Suction Pressure 875 psi (60 bar)
  • Minimum NPSH
  • Temperature Range -40 to 550°F (-40 to 288°C)
Vertical Low-Flow API 685 Pump – LMV-801S

LMV 801S API 685 Sealless Magnetic Drive Pump



  • Flows to 380 gpm (86 m³/hr)
  • Heads to 720 ft (220 m)
  • Maximum Power 100 HP, 75 kW
  • Maximum Suction Pressure 875 psi (60 bar)
  • Minimum NPSH
  • Temperature Range -40 to 400°F (-40 to 205°C)

LMV 802 Direct Drive Pump



  • Flows to 150 gpm (27 m³/hr)
  • Heads to 210 ft (45 m)
  • Maximum Power 50 HP, 37 kW
  • Maximum Suction Pressure 600 psi (101 kg/cm²)
  • Minimum NPSH
  • Temperature Range -200 to 650°F (-130 to 340°C)

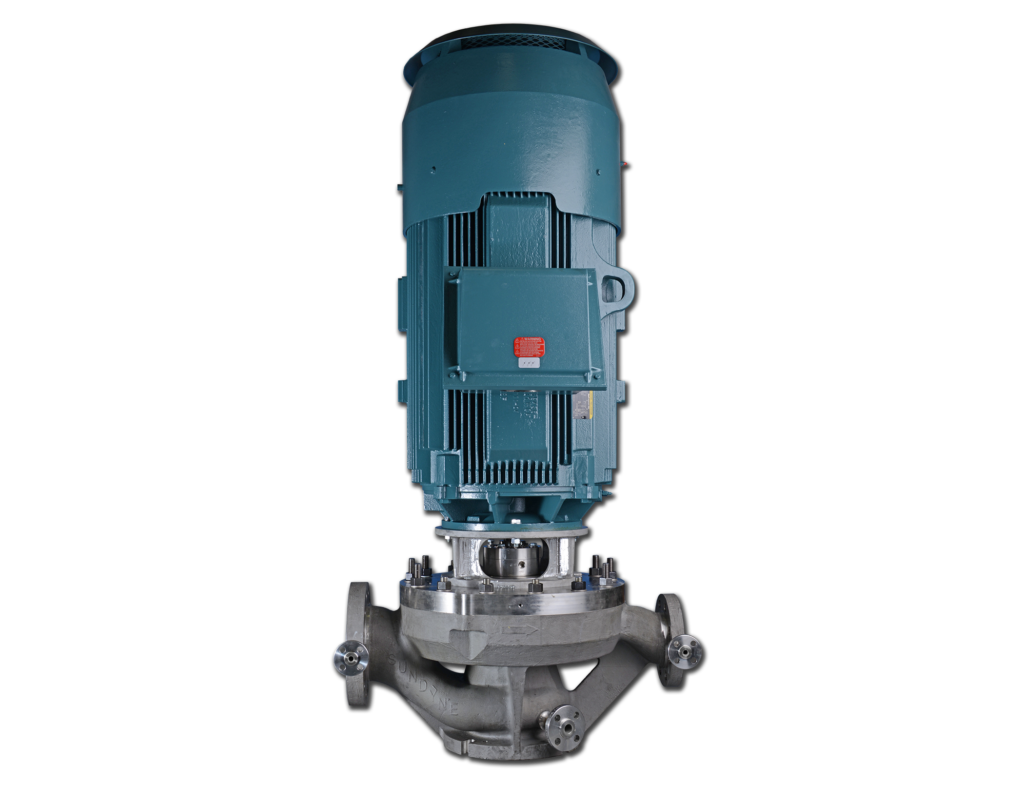

LMV-803Lr RENDERING_14

LMV 803Lr Ultra-Low NPSH Pump



  • Flows to 800 gpm (244 m³/hr)
  • Heads to 1,030 ft (314 m)
  • Maximum Power 400 HP, 298 kW
  • Maximum Suction Pressure 400 psig (bar)
  • Ultra-low NPSHr (<10 ft./3m)
  • Temperature Range -200 to 400°F (-129 to 204°C)

LMV 806 Direct Drive Pump



  • Flows to 380 gpm (69 m³/hr)
  • Heads to 760 ft (162 m)
  • Maximum Power 75 HP, 55 kW
  • Maximum Suction Pressure 557 psi (40 kg/cm²g)
  • Minimum NPSH
  • Temperature Range -40 to 350°F (-40 to 175°C)

About Sundyne

Sundyne is the world leader in delivering low-flow, high-head, integrally geared centrifugal pumps and compressors, sealless magnetic drive pumps and diaphragm gas compressors. Sundyne’s precision-engineered, highly reliable, safe & efficient pumps and compressors are used in chemical, petrochemical, hydrocarbon, hydrogen, pharmaceutical and industrial applications. Sundyne pumps and compressors are also available in API, ANSI/ASME, ISO, and other industry compliant designs.
