HMD Kontro Sealless Magnetic Drive Pumps

HMD Kontro sealless magnetic pumps are designed for reliable and safe operation in chemical processing and downstream refining applications.

HMD Pumps pioneered the sealless magnetic drive pump over seventy years ago, breaking new territory in fluid handling technology. Sundyne combined HMD with the American company Kontro to create HMD Kontro, which stands as the most safe and reliable Sealless magnetic drive pump manufacturer operating today.

As a proven alternative to traditional sealed pumps, HMD Kontro sealless magnetic drive designs present absolutely no risk of emissions or leaks, which can harm productivity, personnel and the environment. With no seals to replace your spare parts inventory can be kept at a minimum, reducing your operating budget.

HMD Kontro sealless magnetic drive pumps are extremely safe for process engineers who must handle high temperature, toxic, lethal, carcinogenic, flammable, expensive, caustic, heat transfer, corrosive, aggressive, high viscosity, high vapor pressure and volatile process fluids.

Sundyne engineers worked to define and establish the API 685 standards and HMD Kontro sealless magnetic drive pumps are widely utilized for processing light hydrocarbons in refining, petrochemical production, midstream natural gas plants, pharmaceutical manufacturing and general industry. Several HMD Kontro models meet that standard and are available for numerous API applications.

Standard chemical sealless magnetic drive by HMD Kontro pumps meet rigorous ASME/ANSI B73,3 and ISO 2858 standards.

Common HMD Kontro Pump Applications



Upstream Oil and Gas

  • Offshore Oil Rigs
  • FPSO’s

Hydrocarbon Processing

  • Downstream Refining
  • Downstream Petrochemical

Chemical Processing

  • Chlor-Alkali
  • Fine Chemical Production

Industrial

  • Pharmaceutical manufacturing

GSP – General Service Petroleum OH2 API 685 Sealless Magnetic Drive Pump



  • Flows to 3,647 gpm (828 m³/hr)
  • Heads to 1,146 ft (350 m)
  • Maximum Power 535 HP, 400 kW
  • Temperature Range -40 to 660°F (-40 to 350°C)

GSPV – General Service Petroleum API 685 Sealless Magnetic Drive Pump



  • Flows to 1,000 gpm (230 m³/hr)
  • Heads to 400 ft (120m)
  • Maximum Power 100 HP, 75 kW
  • Temperature Range -40 to 400°F (-40 to 205°C)

LMV 801S – Line Mounted Vertical API 685 Sealless Magnetic Drive Pump



  • Flows to 380 gpm (86 m³/hr)
  • Heads to 720 ft (220 m)
  • Maximum Power 100 HP, 75 kW
  • Temperature Range -40 to 400°F (-40 to 205°C)

GSPLF – General Service Petroleum Low Flow OH2 API 685 Sealless Magnetic Drive Pump



  • Flows to 132 gpm (30 m³/hr)
  • Heads to 490 ft (150 m)
  • Maximum Power 100 HP, 75 kW
  • Temperature Range -40 to 500°F (-40 to 260°C)

GSPX – BB5 Type, API 685 Multi-Stage Sealless Magnetic Drive Pump



  • Flows to 440 gpm (62 m³/hr)
  • Heads to 1,400 ft (295 m)
  • Maximum Power 167 HP, 125 kW
  • Temperature Range -40 to 500°F (-40 to 260°C)

HPGSP – OH2 API 685 High Pressure Sealless Magnetic Drive Pump



  • Flows to 1,500 gpm (290 m³/hr)
  • Heads to 700 ft (150 m)
  • Maximum Power    HP,    kW
  • Temperature Range -150 to 500°F (-100 to 260°C)

GSPVS – VS4 API 685 Vertical Sump Sealless Magnetic Drive Pump



  • Flows to 308 gpm (70 m³/hr)
  • Heads to 262 ft (80 m)
  • Maximum Power     HP,    kW
  • Temperature Range -20 to 210°F (-30 to 100°C)

GS – General Service Frame 0 ASME/ANSI B73.3 and ISO 2858 Sealless Magnetic Drive Pumps



  • Flows to 317 gpm (58 m³/hr)
  • Heads to 193 ft (41 m)
  • Maximum Power 15 HP, 11 kW
  • Temperature Range -40 to 500°F (-40 to 260°C)

GS – General Service Frame 1 ASME/ANSI B73.3 and ISO 2858 Sealless Magnetic Drive Pumps



  • Flows to 320 gpm (73 m³/hr)
  • Heads to 295 ft (90 m)
  • Maximum Power  40 HP, 30 kW
  • Temperature Range -40 to 500°F (-40 to 260°C)

GS – General Service Frame 2 ASME/ANSI B73.3 and ISO 2858 Sealless Magnetic Drive Pumps



  • Flows to 1,806 gpm (410 m³/hr)
  • Heads to 656 ft (200 m)
  • Maximum Power 100 HP, 75kW
  • Temperature Range -40 to 500°F (-40 to 260°C)

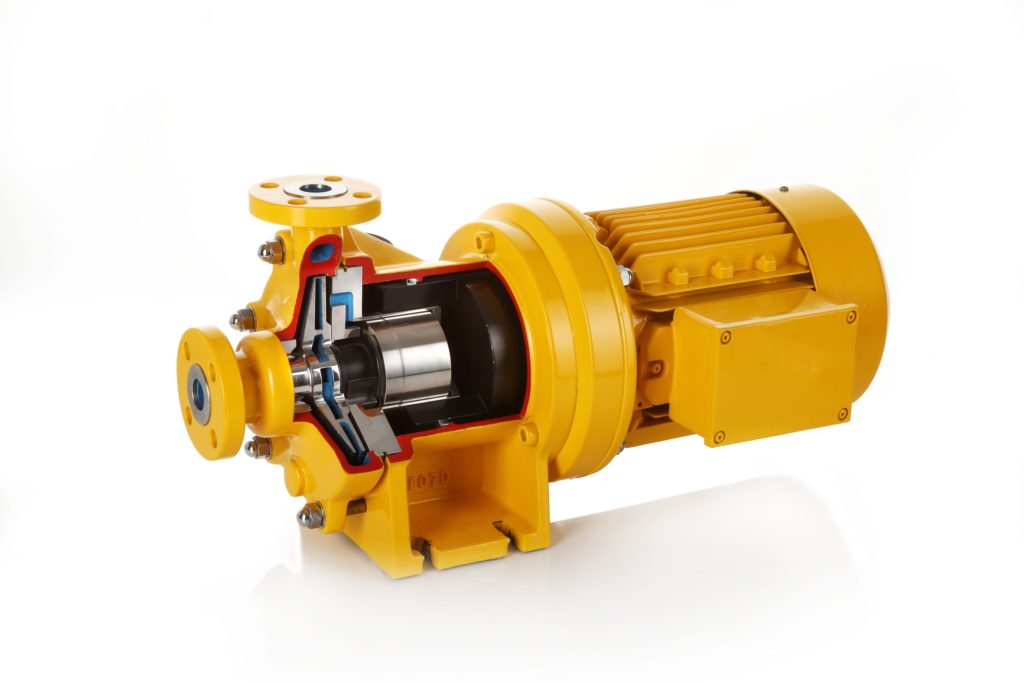

GT – General Transfer (ASME/ANSI B73.3, ISO 2858) Sealless Magnetic Drive Pump



  • Flows to 163 gpm (37 m³/hr)
  • Heads to 190 ft (58 m)
  • Maximum Power 15 HP, 11 kW
  • Temperature Range -40 to 500°F (-40 to 260°C)

HPGS – High Pressure Sealless Magnetic Drive Pump



  • Flows to 1,145 gpm (260 m³/hr)
  • Heads to 460 ft (140 m)
  • Maximum Power  75 HP, 55 kW
  • Temperature Range -40 to 400°F (-40 to 205°C)

CS – Chemical Service Sealless Magnetic Drive Pumps



  • Flows to 1,760 gpm (400 m³/hr)
  • Heads to 490 ft (150 m)
  • Maximum Power 150 HP, 110 kW
  • Temperature Range -112 to 850°F (-80 to 450°C)

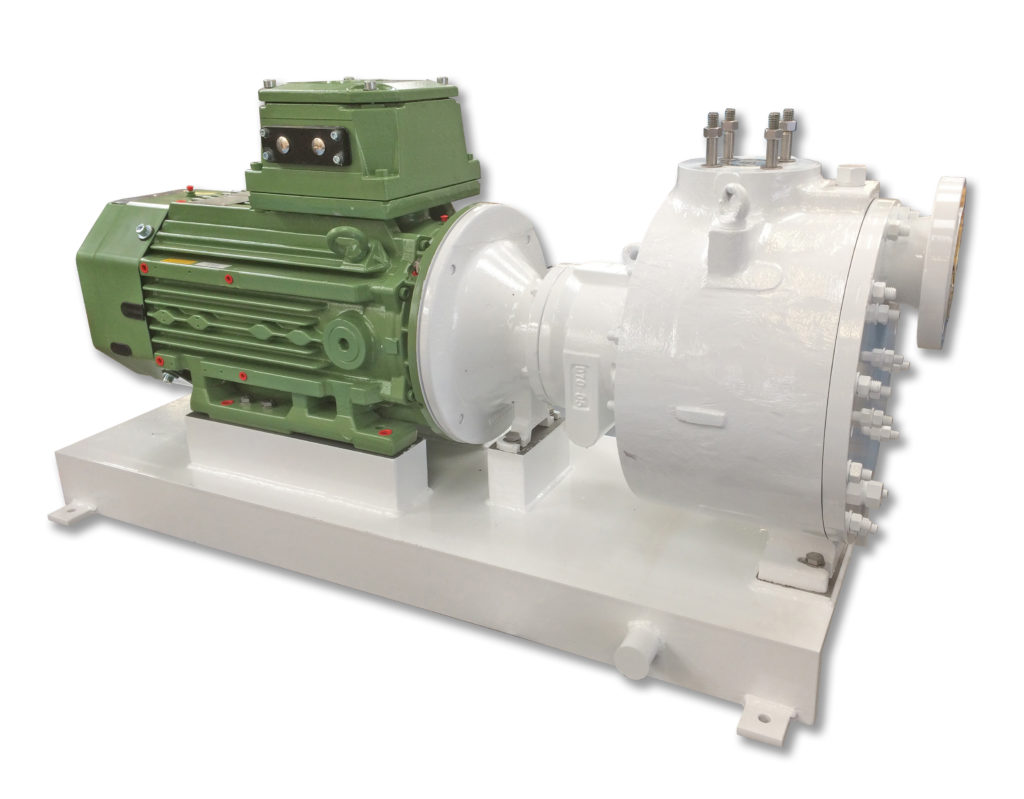

SPGS – Self Priming Sealless Magnetic Drive Pump



  • Flows to 264 gpm (60 m³/hr)
  • Heads to 250 ft (76 m)
  • Maximum Power 40 HP, 30 kW
  • Temperature Range -40 to 250°F (-40 to 120°C)
