Sunflo P 2500 Industrial Grade Pump

The P-2500 is an integrally geared pump that is capable of generating high pressure quickly for plant operators who require on demand liquids for wash down, boiler feed, reverse osmosis or mineral processing. Sunflo pumps utilize high-speed to keep the motor size low resulting in energy savings and increased efficiency.

  • Flows to 180 gpm (41 m³/hr)
  • Heads to 2,600 ft (792 m)

The P-2500 is designed to deliver maximized up-time, reduced maintenance costs and optimized productivity over the lifecycle of the unit. Sunflo pumps are simple to maintain and can be overhauled in minutes without having to remove the pump casing from the baseplate.

Proven to be reliable, cost effective and easy to maintain, Sunflo industrial grade pumps provide a number of operational benefits:

  • Single stage, integrally geared pump
  • Maintain with a shaft and impeller insert
  • Operator does not need to stock spare pumps
  • Maximized up time
  • Saves space-25% the size of competing horizontal pumps
  • Start and stop the pumps quickly for on demand water operations
  • Generates high pressure quickly for water applications

US 60 Hz

  • Heads to                                                  2,600 ft
  • Flows to                                                   180 gpm
  • Maximum Motor Power                           75 HP
  • Temperature Range                                -50 to 300°F
  • Maximum Case Working Pressure          1,440 psi
  • Maximum Suction Pressure                     250 psi
  • Maximum Viscosity                                  10 cp
  • Solids Range                                           0.015″, 400 microns
  • Mounting Configuration                           Vertical, Horizontal
  • Seal Configurations                                 Single, Double, Tandem
  • Available Inducer                                    Yes
  • Available Flanges                    NPT, 300# RF, 600# RF
  • Suction and Discharge Size          2″ x 1.5″
  • Seal Plans                           11, 13, 21, 23, 31, 32, 41, 52, 53

Metric 50 Hz

  • Heads to                                                  554 m
  • Flows to                                                   40 m3/hr
  • Maximum Motor Power                           55 kW
  • Temperature Range                                -50 to 300°C
  • Maximum Case Working Pressure         105 kg/cm2
  • Maximum Suction Pressure                     18 kg/cm²
  • Maximum Viscosity                                 10 cp
  • Solids Range                                           0.381mm, 400 microns
  • Mounting Configuration                           Vertical, Horizontal
  • Seal Configurations                                 Single, Double, Tandem
  • Available Inducer                                    Yes
  • Available Flanges                    NPT, 300# RF, 600# RF
  • Suction and Discharge Size          2″ x 1.5″
  • Seal Plans                           11, 13, 21, 23, 31, 32, 41, 52, 53

316 Stainless Steel (Duplex SS)

Hastelloy

AISI 4140/8620/9310 Steel

Aluminum

Cast Steel

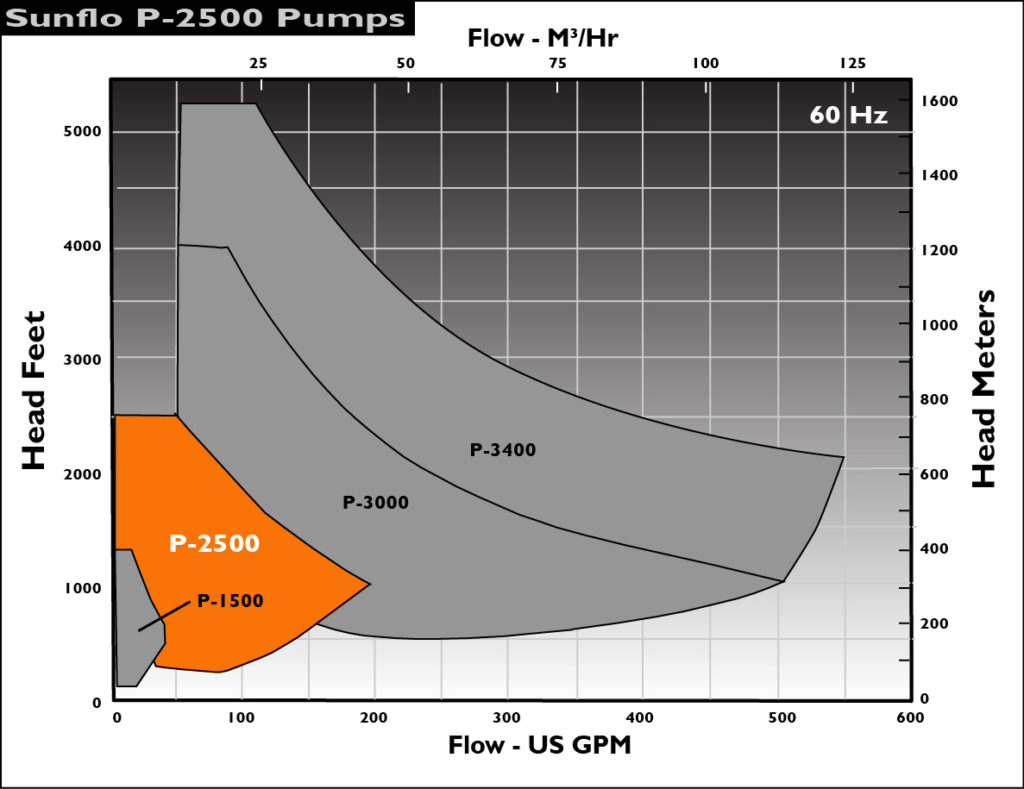

Sunflo P2500 Pump Performance Envelope-60Hz

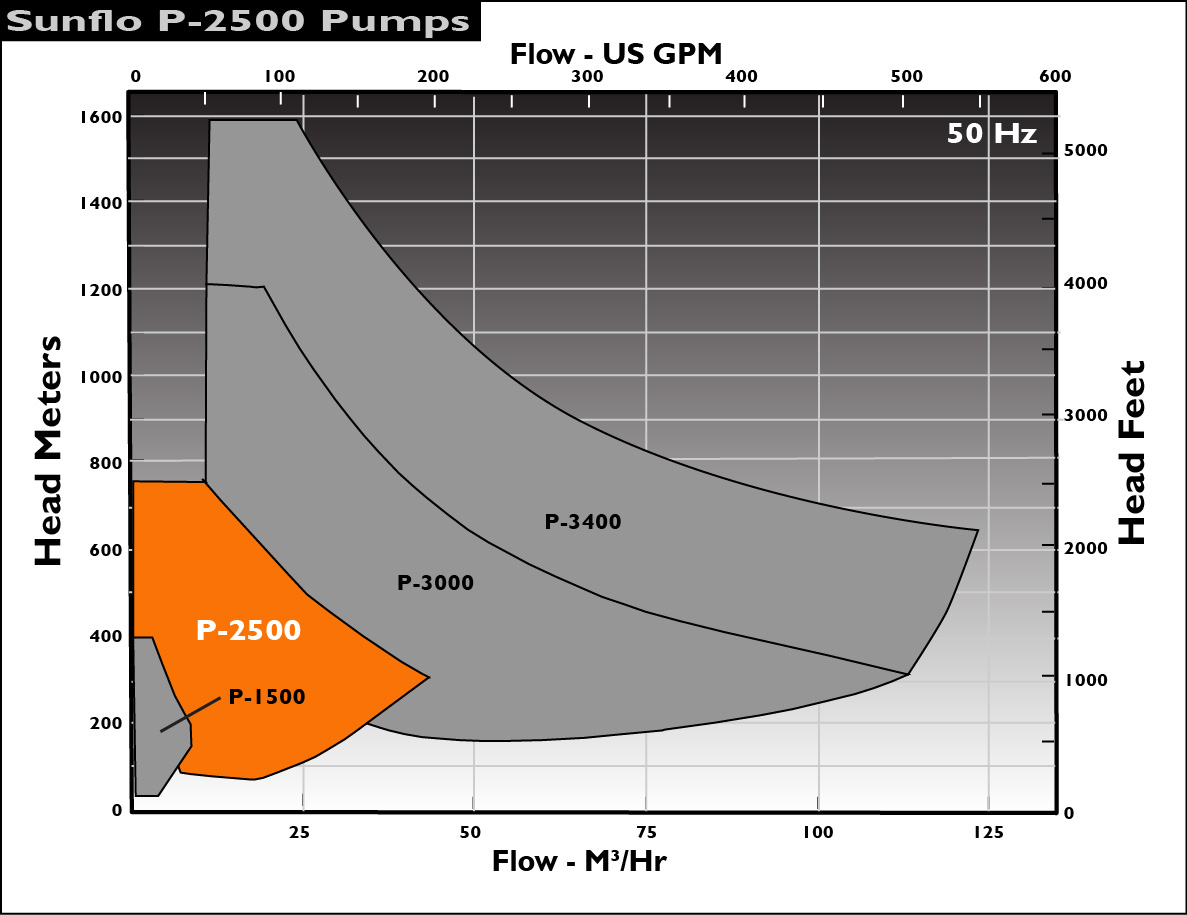

Sunflo P2500 Pump Performance Envelope-50Hz
