Sunflo P 1500 Industrial Grade Pump

Sunflo P-1500 Industrial Grade Pump

The P-1500 is an integrally geared pump that is capable of generating high pressure quickly for plant operators who require on demand liquids for wash down, reverse osmosis or mineral processing. Sunflo pumps utilize high-speed to keep the motor size low resulting in energy savings and increased efficiency.

  • Flows to 33 gpm (7.5 m³/hr)
  • Heads to 1,300 ft (396 m)

The P-1500 is designed to deliver maximized up-time, reduced maintenance costs and optimized productivity over the lifecycle of the unit. Sunflo pumps are simple to maintain and can be overhauled in minutes without having to remove the pump from the baseplate and piping.

Benefits

Proven to be reliable, cost effective and easy to maintain, Sunflo industrial grade pumps provide a number of operational benefits:

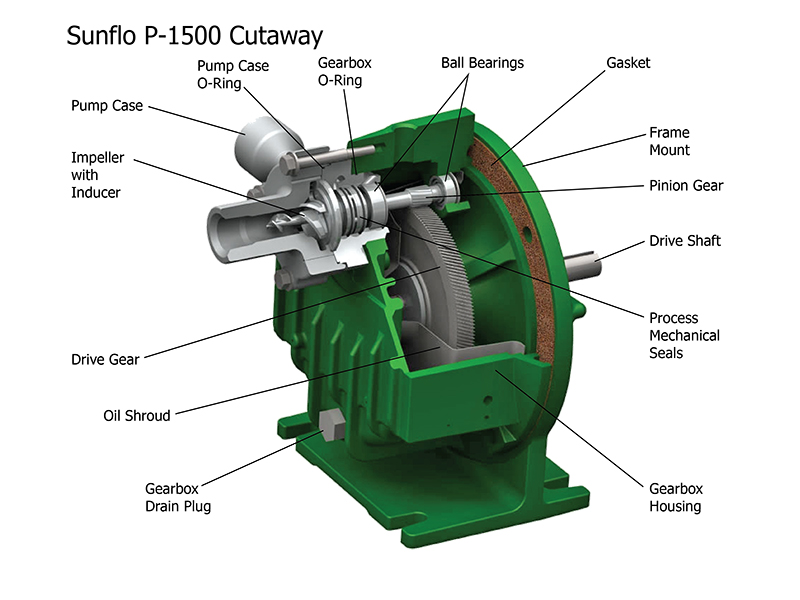

  • Single stage, integrally geared pump
  • Maintain with a shaft and impeller insert
  • Operator does not need to stock spare pumps
  • Maximized up time
  • Saves space-25% the size of competing horizontal pumps
  • Start and stop the pumps quickly for on demand water operations
  • Generates high pressure for water applications

Specifications

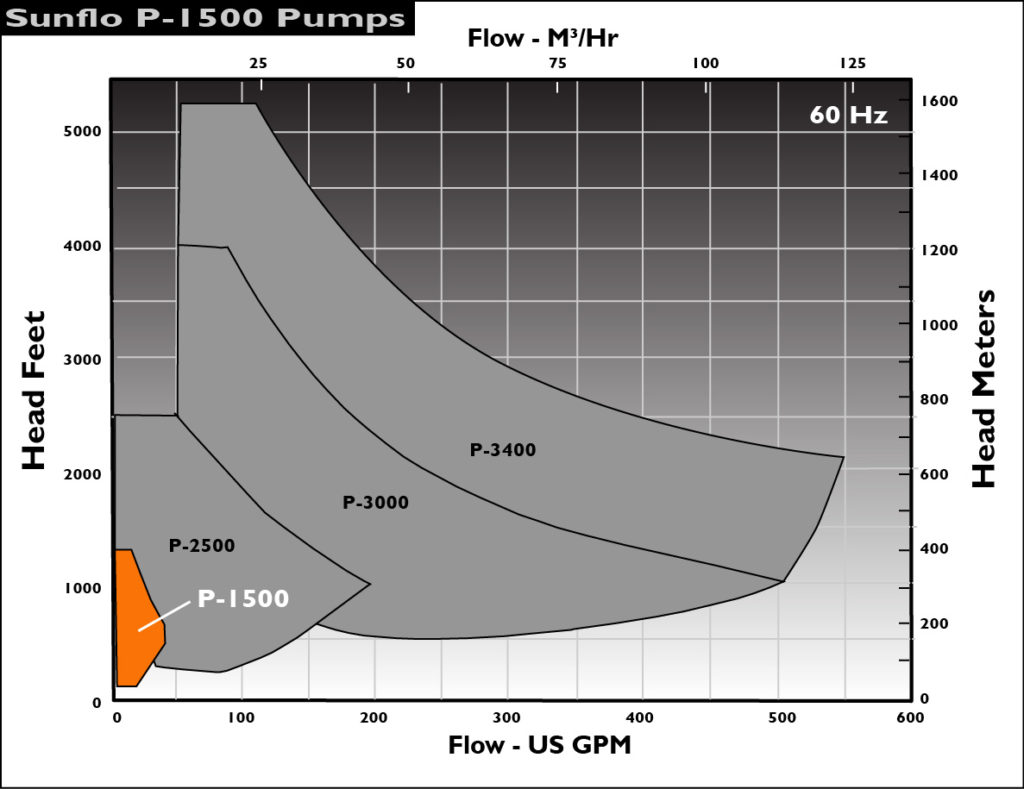

US 60 Hz

  • Heads to                                                  1,300 ft
  • Flows to                                                   33 gpm
  • Maximum Motor Power                           10 HP
  • Temperature Range                                -50 to 300°F
  • Maximum Case Working Pressure          1,000 psi
  • Maximum Suction Pressure                     200 psi
  • Maximum Viscosity                                  10 cp
  • Solids Range                                           0.015″, 400 microns
  • Mounting Configuration                           Close coupled, Frame mounted
  • Seal Configurations                                 Single, Double
  • Available Inducer                                    Yes
  • Available Flanges                                    NPT and 300# RF
  • Suction and Discharge Size                  1″ x 1″
  • Seal Plans                                            11, 13, 21, 31, 41, 53

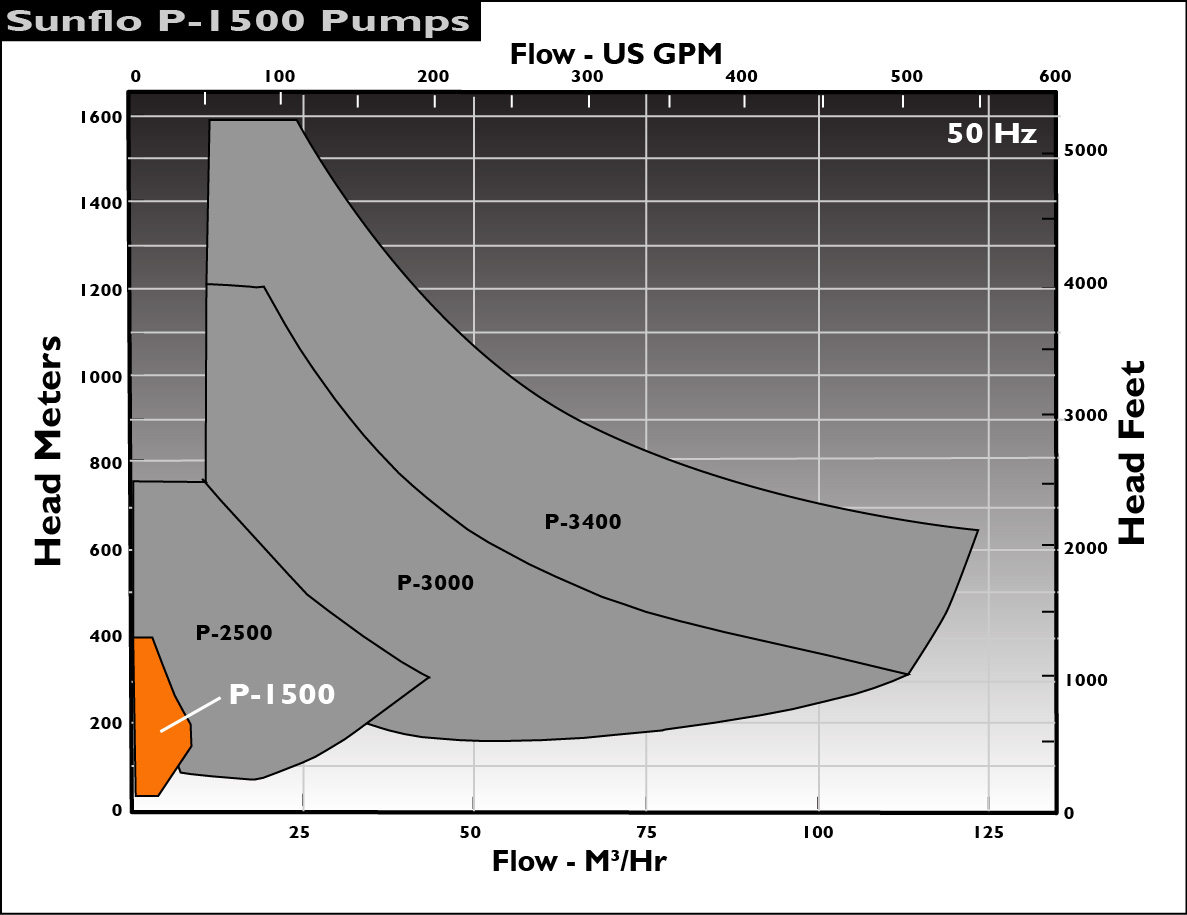

Metric 50 Hz

  • Heads to                                                  277 m
  • Flows to                                                   6 m3/hr
  • Maximum Motor Power                           7 kW
  • Temperature Range                                -46 to 149°C
  • Maximum Case Working Pressure         155 kg/cm2
  • Maximum Suction Pressure                     70 kg/cm²
  • Maximum Viscosity                                 750 cp
  • Solids Range                                           0.381mm, 400 microns
  • Mounting Configuration                           Close Coupled, Frame Mounted
  • Seal Configurations                                 Single, Double
  • Available Inducer                                    Yes
  • Available Flanges                                    NPT and 300# RF
  • Suction and Discharge Size                  1″ x 1″
  • Seal Plans                                            11, 13, 21, 31, 41, 53

Materials

316 Stainless Steel (Duplex SS)

Hastelloy

AISI 4140/8620/9310 Steel

Aluminum

Cast Steel
