Sundyne LMV 801 Direct Drive Pump

Safe, reliable and economical the Sundyne API 610, OH3 or OH5, Direct Drive Pump

The Sundyne LMV-801 is Sundyne’s original direct drive pump.  Over the last several decades, thousands of these general service pumps have been deployed by process and rotating equipment engineers for industrial applications in the hydrocarbon, refining, petrochemical, chemical production, oil and gas production, offshore and specialty processing industries. Sundyne pumps are renowned for high suction pressure and for a wide range of operating temperatures.

  • Flows to 380 gpm (86 m³/hr)
  • Heads to 720 ft (219 m)
  • Suction Pressure 1,000 psi (71 kg/cm²)
  • Temperature Range -200 to 650°F (-130 to 340°C)

The vertical configuration of the direct drive line of Sundyne pumps are specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.

APPLICATIONS

  • Feed pumps
  • Booster pumps
  • Bottoms pumps
  • Wash water pumps
  • Reflux pumps
  • Condensate pumps

Proven to be reliable, safe, compact and efficient, Sundyne LMV 801 pumps provide a number of operational benefits:

  • Single stage, vertical in-line overhung pump according to ISO 13709/API 610 OH3 design recommendations with separate bearing housing and OH5 rigidly coupled
  • Maximized up time
  • Saves space-25% the size of competing horizontal pumps
  • API 610 OH3 and OH5
  • ATEX certified
  • Continuous operations for 5 years with no overhaul
  • Upgradable to sealless magnetic drive API 685 without changing piping
  • Upgradable to cartridge seal API 682
  • Barske impeller low NPSH technology

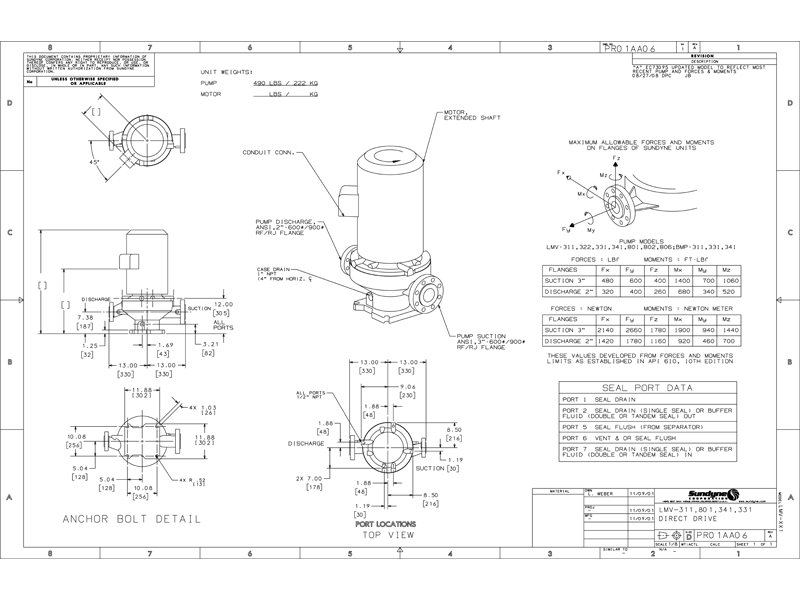

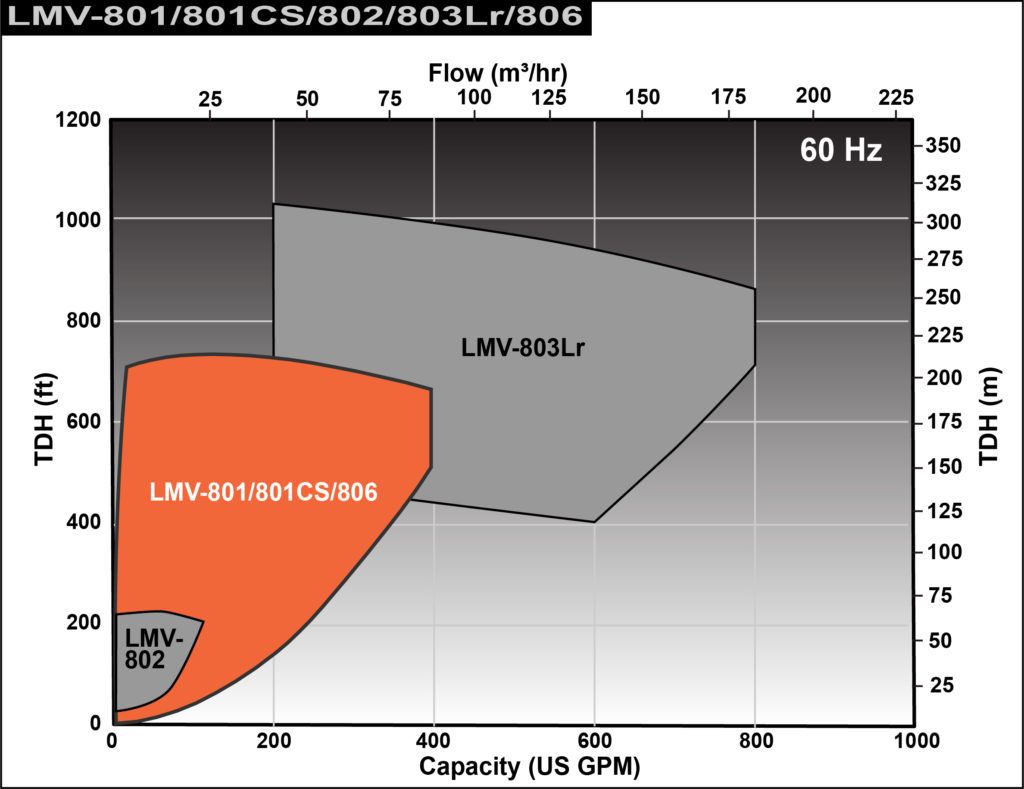

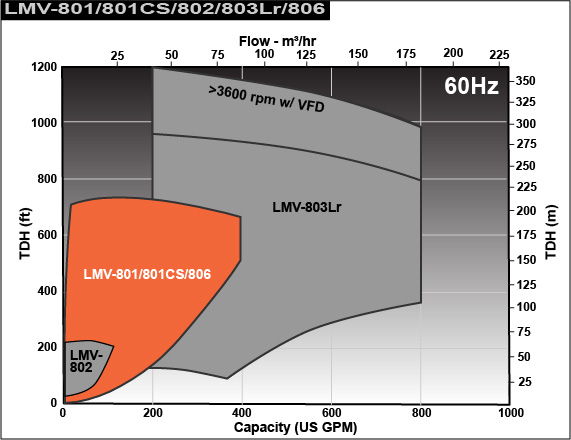

US 60 Hz

  • Heads to                                                  720 ft
  • Flows to                                                   380 gpm
  • Standards                                               API 610 OH3 and 5
  • Maximum Motor Power                           75 HP
  • Temperature Range                                -200 to 650°F
  • Maximum Case Working Pressure          2,160 psi
  • Maximum Suction Pressure                     1,000 psi
  • Differential Head                                      450 ft
  • Maximum Viscosity                                  750 cp
  • Solids Range                                           0.015″ (0.381mm), 400 microns
  • Mounting Configuration                           Vertical
  • Seal Configurations                                 Single, Double, Tandem
  • Available Inducer                                    Yes
  • Available Flanges                        600# ANSI RF, 900# RF Optional
  • Suction and Discharge Size           3″ x 2″
  • API Plans     11, 12, 13, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62, J

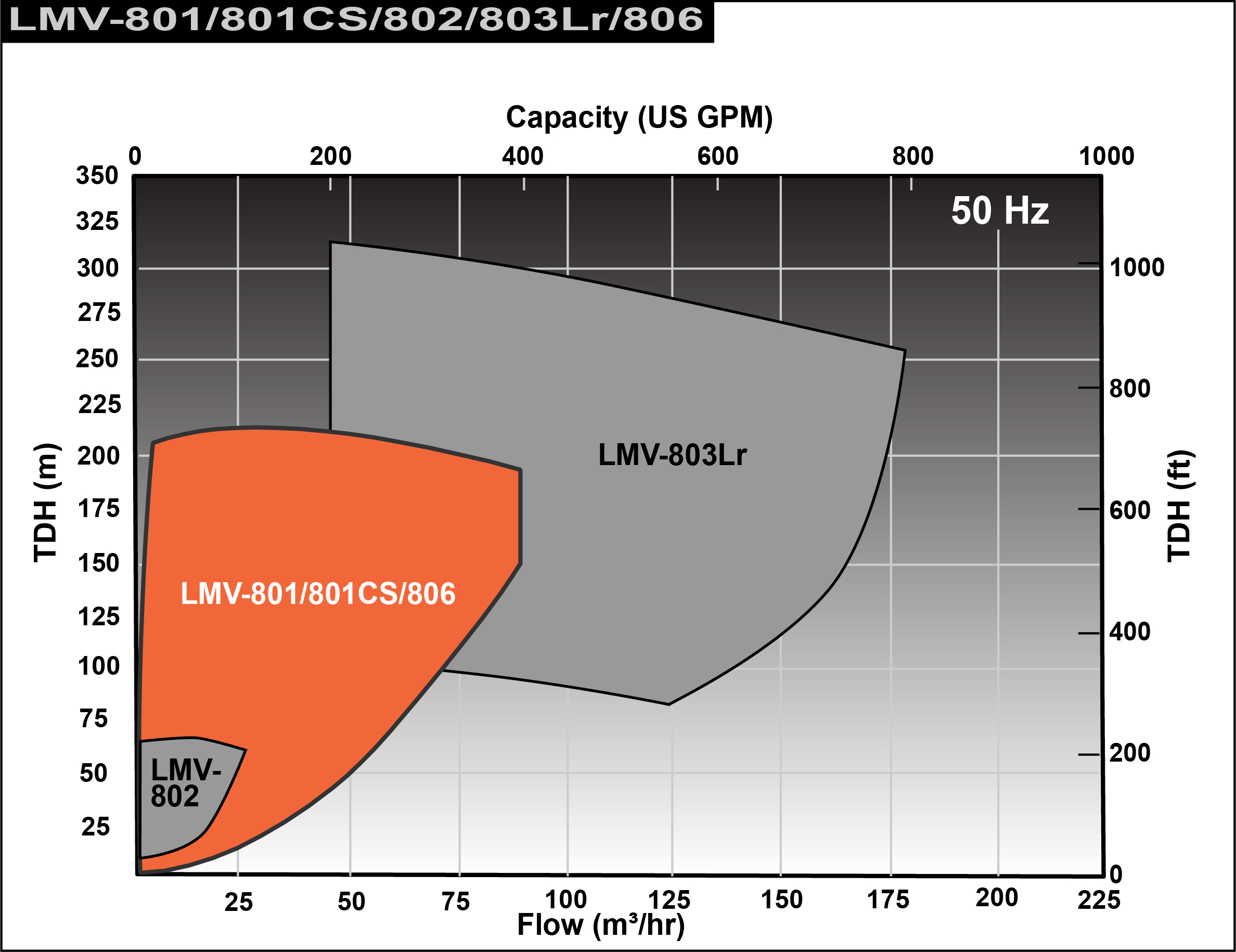

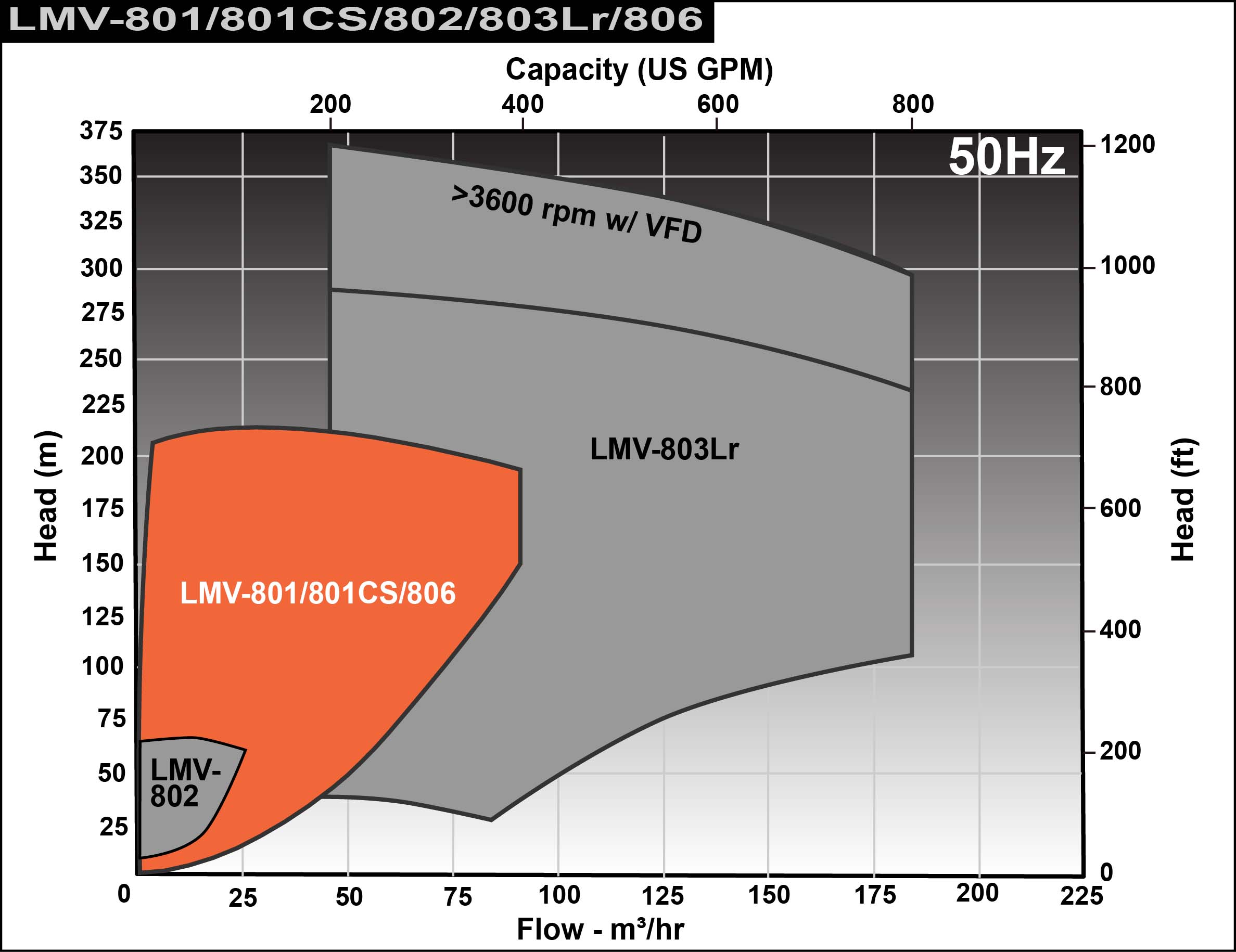

Metric 50 Hz

  • Heads to                                                  153 m
  • Flows to                                                   69 m3/hr
  • Standards                                                API 610
  • Maximum Motor Power                           55 kW
  • Temperature Range                                -130 to 340°C
  • Maximum Case Working Pressure         152 kg/cm2
  • Maximum Suction Pressure                     71 kg/cm²
  • Differential Head                                      137 m
  • Maximum Viscosity                                 750 cp
  • Solids Range                                           0.381mm, 400 microns
  • Mounting Configuration                           Vertical, Horizontal
  • Seal Configurations                                 Single, Double, Tandem
  • Available Inducer                                    Yes
  • Available Flanges                        600# ANSI RF, 900# RF Optional
  • Suction and Discharge Size           3″ x 2″
  • API Plans     11, 12, 13, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62, J

LMV 801 BUILD CODES

A

E

J

O (1)

W

API 610 BUILD (2)

S-5 (3)

A-7 (4)

S-8 (4)

N/A

S-9 (4)

Pump Case

C.S.

316 SS

C.S.

316 SS

Monel Clad C.S.

Case Studs

B-7

B-7

page6image17158464B-7 page6image17159616B-8M

K-Monel

Seal Housing

C.S.

316 SS

page6image17163456C.S. page6image17165184316 SS

Monel

Separator

316 SS

316 SS

316 SS

316 SS

Monel

Diffuser Insert

C.S.

316 SS

page6image17169984316 SS page6image17105472316 SS

Monel

Diffuser Cover

C.S.

316 SS

page6image17109312316 SS page6image17111040316 SS

Monel

Impeller

316 SS

316 SS

316 SS

316 SS

Monel

Impeller Bolt

316 SS

316 SS

page6image17116992316 SS 316 SS

K-Monel

Inducer

316 SS

316 SS

316 SS

316 SS

Monel

Tab Washer

316 SS

316 SS

316 SS

316 SS

Monel

Shaft Sleeve

316 SS

316 SS

316 SS

17-4 PH

Monel

Throttle Bushing

316 SS

316 SS

page6image16950848316 SS page6image16952000316 SS

Monel

Metal Seal Parts

316 SS

page6image17267520316 SS page6image17121024316 SS

316 SS

Monel

Stationary Face

Binderless Carbon or Silicon Carbide

Rotating Face

page6image16962624Tungsten Carbide with Cobalt or Nickel Binder

Shaft (all)

4140 Steel to 0° F, 15-5 from 0° F to –240° F.

O-rings

As Required

  1. “O” build temperature range 0 to -240°F (115°C) Pressure capability is reduced due to strain hardened pump case studs. Contact Application Engineering.
  2. See Sundyne Corporation exceptions/clarifications to API 610, 11th Edition for material requirements of pump parts.
  3. Impeller is upgraded to 316SS. A seal gland is not required because the seals mount in the seal housing. O-rings are used instead of a case gasket.
  4. A seal gland is not required because the seals mount in the seal housing. The pump shaft is AISI 4140 because it is not exposed to the fluid. O-rings are used instead of a case gasket.
  5. Diffuser Inserts and Diffuser Covers apply to model LMV-801 only.
