Sundyne LF 2X80 API 617 / ISO 10439 Base Mounted Integrally Geared Multi-Stage Process Gas Compressors

Sundyne-LF-2XX0

Reliable and economical, Sundyne integrally geared multi-stage compressors

Process gas compressors are the heart of the process. Their reliability directly impacts the productivity and the efficiency of the midstream, hydrocarbon processing or chemical plant.

The Sundyne LF 2X80 is a compressor that can be outfitted to meet exact API and ISO standards, or it is can be economically engineered as a fit-for-purpose compressor.  The 2X80 features from one to four stages of centrifugal compressors on a single gearbox. These designs save valuable space and reduces energy costs. Process engineers utilize these multi-stage compressors for midstream, hydrocarbon processing and chemical manufacturing applica­tions including mole sieve dehydration, regeneration of the demethanizer, waste gas, hydrogen recycle and specialty chemical production.  Each compressor is custom built to provide pulsa­tion- and vibration-free operation, and to deliver oil-free process gas with zero emissions.

  • Flows to 6,000 acfm (10,200 AM³/hr)
  • Maximum working pressure 1,440 psi (100 bar)

With a design heritage meeting API-617 / ISO 10439 standards, the LF 2X80 will run continuously for 5 years without costly maintenance or an overhaul. These horizontally configured compressors are ideal for skid packaging — due to their unique modular baseplate — and are easy to install into any process environment. Packaging and instrumentation are customizable to meet your needs and specifications. NACE compliant Sundyne compressors do not rust or corrode.

Sundyne gas compressors provide the performance envelope, the feature set, the reliability ratings and the uncompromising efficiency needed to address the Best Efficiency Point (BEP) for any process gas application in the most demanding environments.

APPLICATIONS

  • Mole sieve dehydration
  • Regeneration of the demethanizer
  • Waste gas
  • Hydrogen recycle
  • Specialty chemical production
  • Fuel gas boost for power generation

Proven to be reliable, safe, compact and efficient, the Sundyne line of integrally geared multi-stage compressors provide a number of operational benefits:

  • One or two stage in-line overhung integrally geared compressor
  • Single gearbox and motor saves energy and space
  • Maximized up time
  • Saves space-25% the size of competing reciprocating, barrel, rotary screw and diaphragm compressors
  • Continuous operations for 5 years with no overhaul
  • Optimized compressor engineering to meet the BEP – Best Efficiency Point to save energy through efficiency
  • Smaller gearbox housing to reduce weight and cost
  • Can be built as a fit-for-purpose compressor reducing instrumentation and complexity to meet customers needs

US 60 Hz

  • Maximum Flow                                            6,000 acfm
  • Maximum Speed                                         32,000 rpm
  • Maximum Working Pressure                      1,440 psi
  • Temperature Range                                    -200 to 500°F
  • Maximum Motor Power                               800 HP
  • Hydro Test Pressure                                    1.5 X working pressure
  • Minimum Case Thickness                           1″
  • Corrosion Allowance                                   .125″
  • Impeller Clearance                                      .03″ to .05″
  • Shaft Diameter at Bearings                         1.5″ to 2″
  • Mechanical Seal Sizes – Outboard             2.3″
  • Mechanical Seal Sizes – Inboard                2.3″
  • Mounting                                                      Horizontal
  • Flanges                                                         300, 600# ANSI RF Standard
  • Suction Flange                                             4-10″
  • Discharge Flange                                         3-10″
  • Process Seals                                                Cartridge-single, double, tandem
  • Industry Standard                                       API 617

Metric 50 Hz

  • Maximum Flow                                     10,200 am³/hr
  • Maximum Speed                                   32,000 rpm
  • Maximum Working Pressure                100 bara
  • Temperature Range                              -130 to 260°C
  • Maximum Motor Power                         596 kW
  • Hydro Test Pressure                             1.5 X Max working pressure
  • Minimum Casing Thickness                 25.4 mm
  • Corrosion Allowance                             3.18 mm
  • Impeller Clearance                               .76 to 1.27 mm
  • Shaft Diameter at Bearings                  38.1-50.8 mm
  • Mechanical Seal Sizes-Onboard          58.4 mm
  • Mechanical Seal Sizes-Inboard            58.4 mm
  • Mounting                                               Horizontal
  • Flanges                                                 ISO
  • Suction Flange                                      76.2 mm
  • Discharge Flange                                  50.8 mm
  • Process Seals                                        Cartridge-single, double, tandem
  • Industry Standard                                ISO 10439

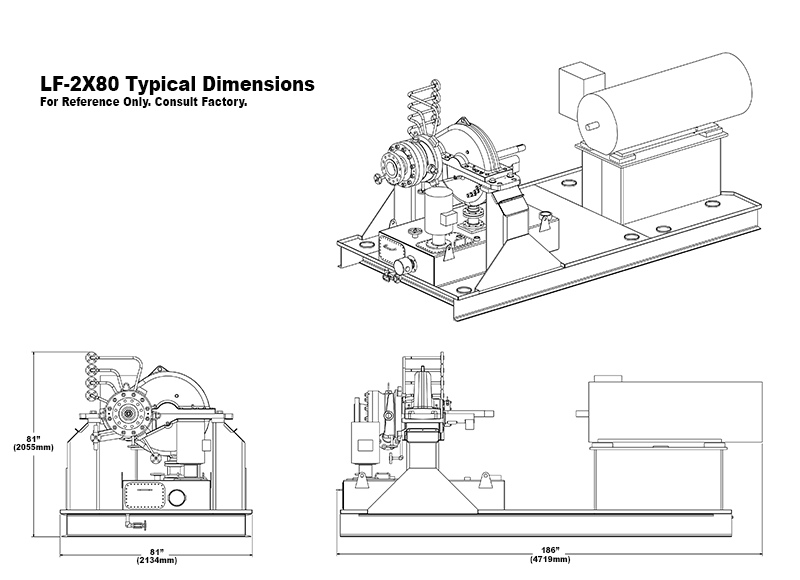

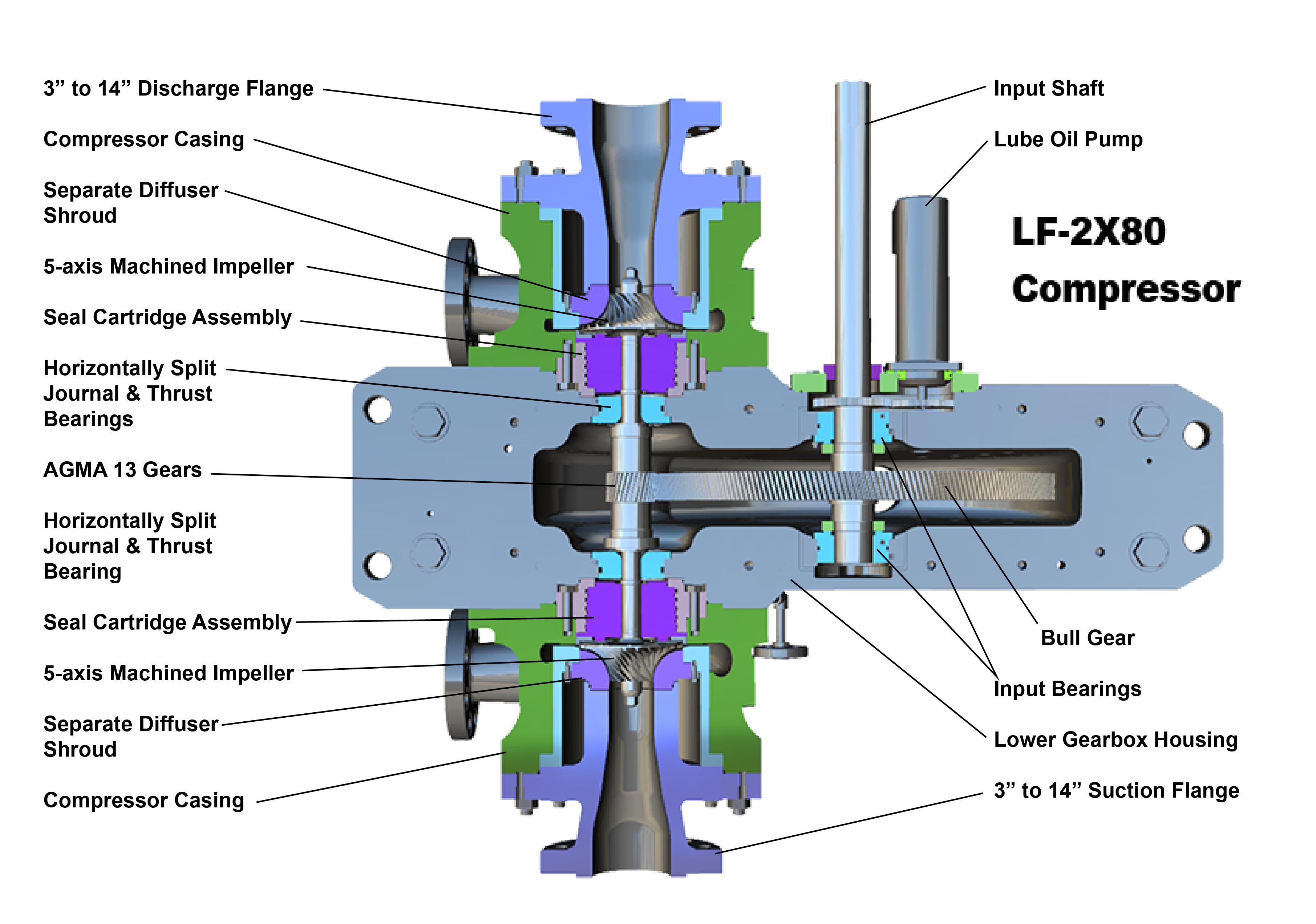

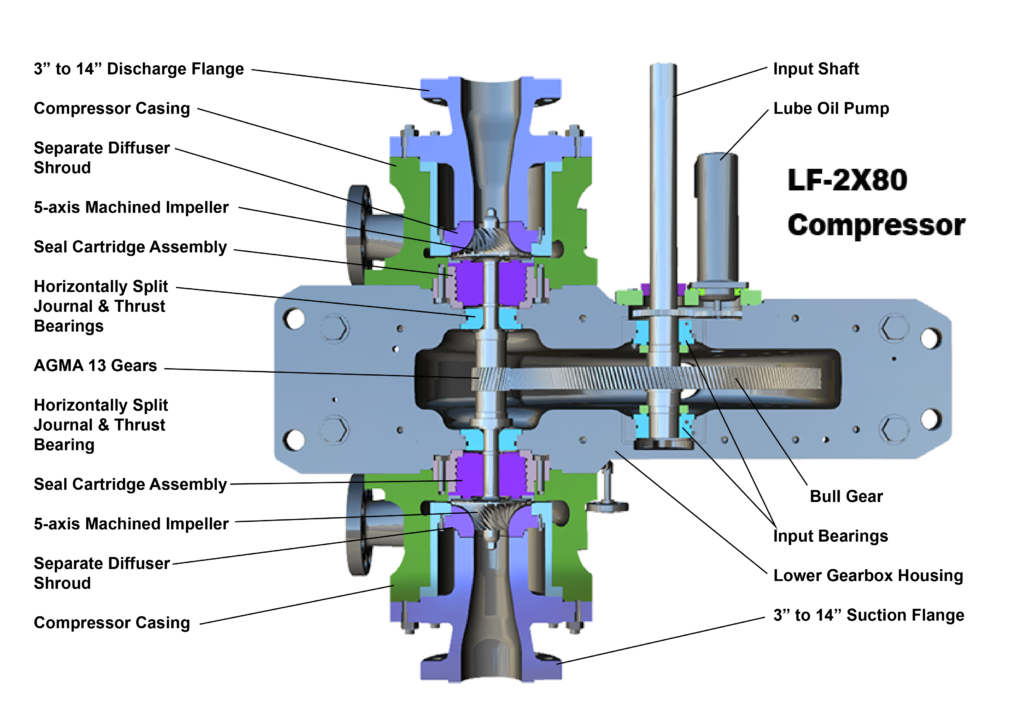

Gearbox Housing: Carbon Steel
High Speed Shaft with Integral Pinion: AMS 6260, 6265
Input Shaft: AISI 4340
Gears: Bull Gear – Nitrided Steel
Gears: Pinion – Carburized Steel
Low Speed Bearings: Radial Journal / Tapered Land Thrust
High Speed Bearings: Deflection Pad Journal
High Speed Bearings: Thrust – Tapered Land, Tilt-Pad, Hydrostatic
