Sundyne LF 2000 API 617 / ISO 10439 Base Mounted Integrally Geared Multi-Stage Process Gas Compressors

Sundyne LF 2000 Compressor

Reliable and economical, Sundyne API 617 / ISO 10439 integrally geared multi-stage compressors

Process gas compressors are the heart of the process. Their reliability directly impacts the productivity and the efficiency of the midstream, hydrocarbon processing or chemical plant.

The Sundyne LF 2000, commonly referred to as a Pinnacle is a compressor that can be outfitted to meet exacting API and ISO standards.  The LF 2000 features from one to six stages of centrifugal compressors on a single gearbox. These designs save valuable space and reduces energy costs. Process engineers utilize these multi-stage compressors for midstream, hydrocarbon processing and chemical manufacturing applica­tions including mole sieve dehydration, regeneration of the demethanizer, waste gas, hydrogen recycle and specialty chemical production.  Each compressor is custom built to provide pulsa­tion- and vibration-free operation, and to deliver oil-free process gas with zero emissions.

  • Flows to 10,000 acfm (17,000 AM³/hr)
  • Maximum working pressure 5,000 psi (350 bar)

Built to meet exacting API-617 / ISO 10439 standards, the LF 2000 will run continuously for 5 to 7 years without costly maintenance or an overhaul. These horizontally configured compressors are ideal for skid packaging — due to their unique modular baseplate — and are easy to install into any process environment. Packaging and instrumentation are customizable to meet your needs and specifications. NACE compliant Sundyne compressors do not rust or corrode.

Sundyne gas compressors provide the performance envelope, the feature set, the reliability ratings and the uncompromising efficiency needed to address the Best Efficiency Point (BEP) for any process gas application in the most demanding environments.

APPLICATIONS

  • Mole sieve dehydration
  • Regeneration of the demethanizer
  • Waste gas
  • Hydrogen recycle
  • Specialty chemical production
  • Fuel gas boost for power generation

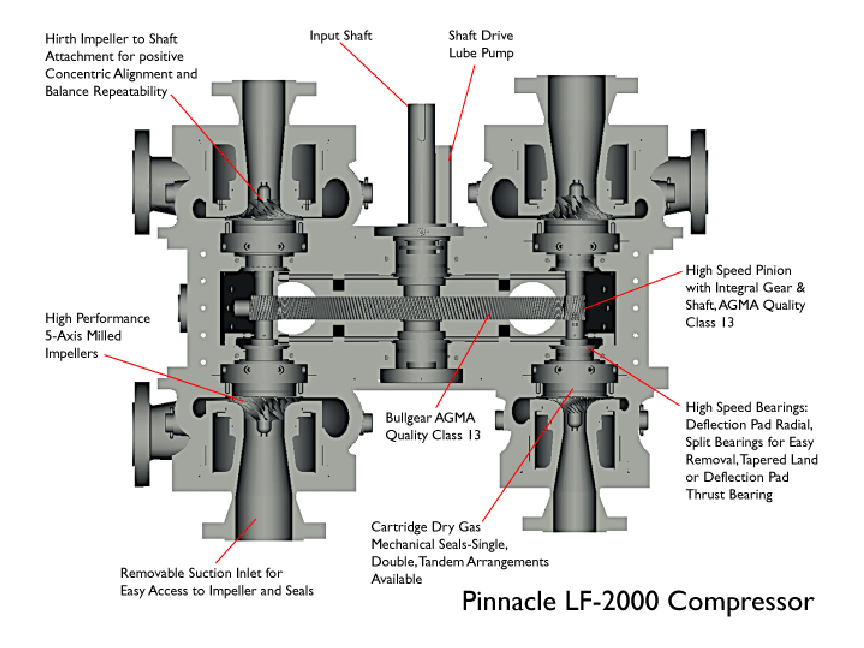

Proven to be reliable, safe, compact and efficient, the Sundyne LF 2000 API 617 / ISO 10439 line of integrally geared multi-stage compressors provide a number of operational benefits:

  • Up to six stages, overhung, integrally geared compressor per API 617 and ISO 10439 standards
  • Single gearbox and motor saves energy and space
  • Maximized up time
  • Saves space-25% the size of competing reciprocating, barrel, rotary screw and diaphragm compressors
  • Continuous operations for 5-7 years with no overhaul
  • Optimized compressor engineering to meet the BEP – Best Efficiency Point to save energy through efficiency
  • Meets full API 617 and ISO standards for use in hydrocarbon processing or gas processing applications

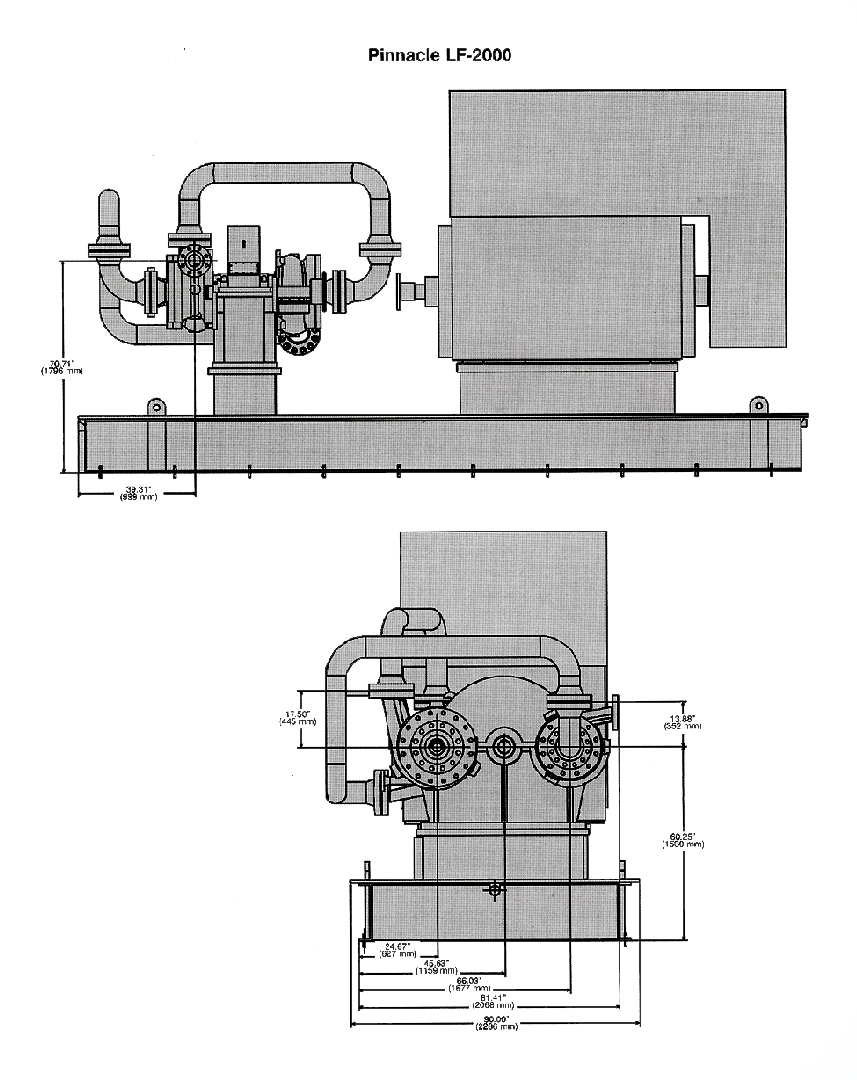

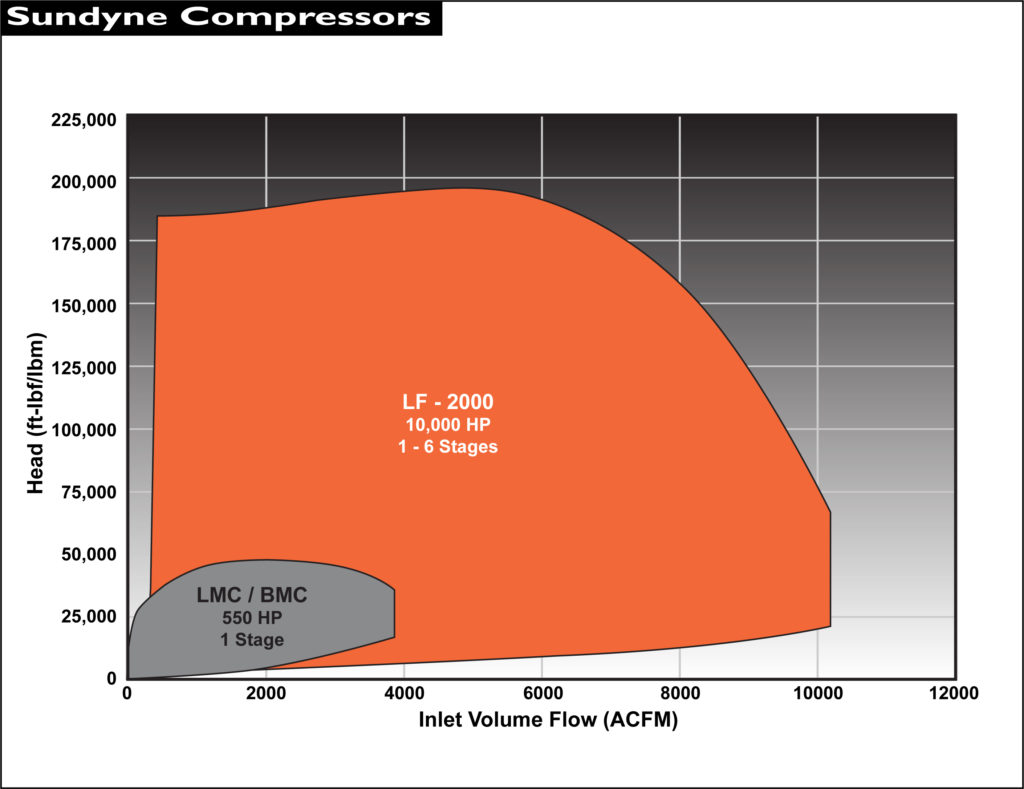

US 60 Hz

  • Maximum Flow                                            10,000 acfm
  • Maximum Speed                                         42,000 rpm
  • Maximum Working Pressure                      5,000 psi
  • Temperature Range                                    -256 to 500°F
  • Maximum Motor Power                               10,000 HP
  • Hydro Test Pressure                                    1.5 X working pressure
  • Minimum Case Thickness                           1″
  • Corrosion Allowance                                   .125″
  • Impeller Clearance                                      .03″ to .05″
  • Mounting                                                      Horizontal
  • Flanges      150, 300, 600# ANSI RF Standard, other ratings available
  • Suction Flange                                             3-14″
  • Discharge Flange                                         2-12″
  • Gearbox Oil Temp Range                         120 to 500°F
  • Gearbox Lubricant                   ISO VG-32 General Purpose Oil
  • Gearbox Lube System                               Pressurized
  • Gears                            Hardened and precision ground, helical
  • Input Bearings                                            Journal
  • Output Bearings                                         Deflection Pad
  • Coupling                                                      Spacer Type
  • Industry Standard                                       API 617

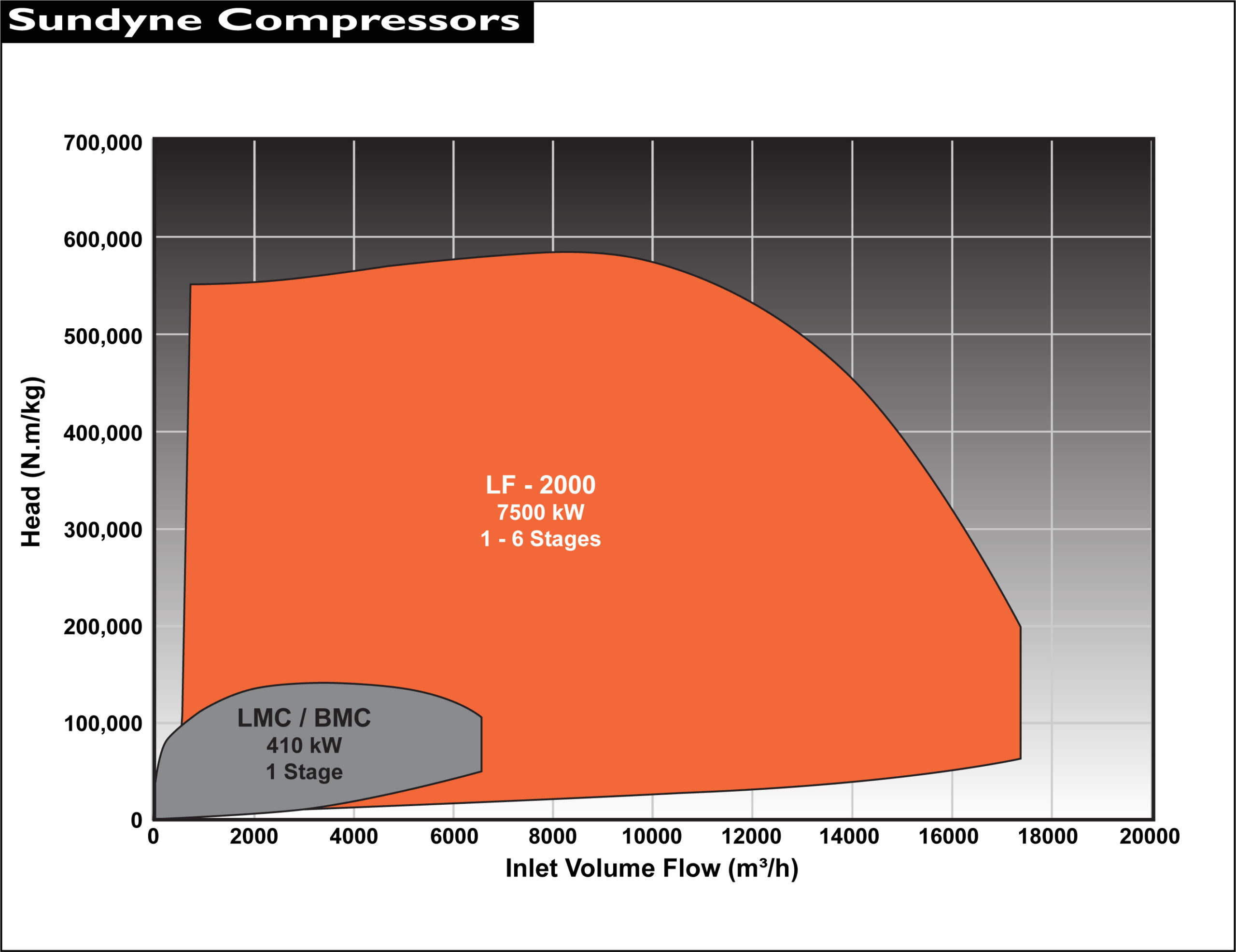

Metric 50 Hz

  • Maximum Flow                                     17,000 am³/hr
  • Maximum Speed                                   42,000 rpm
  • Maximum Working Pressure                350 bar
  • Temperature Range                              -160 to 260°C
  • Maximum Motor Power                         7,500 kW
  • Hydro Test Pressure                             1.5 X Max working pressure
  • Minimum Casing Thickness                 25.4 mm
  • Corrosion Allowance                             3.18 mm
  • Impeller Clearance                               .76 to 1.27 mm
  • Mounting                                               Horizontal
  • Flanges                                                 ISO
  • Suction Flange                                      76.2 – 355.6 mm
  • Discharge Flange                                  50.8 – 304.8 mm
  • Gearbox Oil Temp Range                   49 – 82°C
  • Gearbox Lubricant                ISO VG-32 General Purpose Oil
  • Gearbox Lube System                        Pressurized
  • Gears                                  Hardened and precision ground, helical
  • Input Bearings                                     Journal
  • Output Bearings                                  Deflection Pad
  • Coupling                                                Spacer Type
  • Industry Standard                                ISO 10439

Castings (carbon steel, stainless steel)

Impeller (17-4PHSS, Titanium)

About Sundyne

Sundyne is the world leader in delivering low-flow, high-head, integrally geared centrifugal pumps and compressors, sealless magnetic drive pumps and diaphragm gas compressors. Sundyne’s precision-engineered, highly reliable, safe & efficient pumps and compressors are used in chemical, petrochemical, hydrocarbon, hydrogen, carbon capture, renewable fuels, power generation and industrial applications. Sundyne pumps and compressors are available in API, ANSI/ASME, ISO, and other industry compliant designs.
