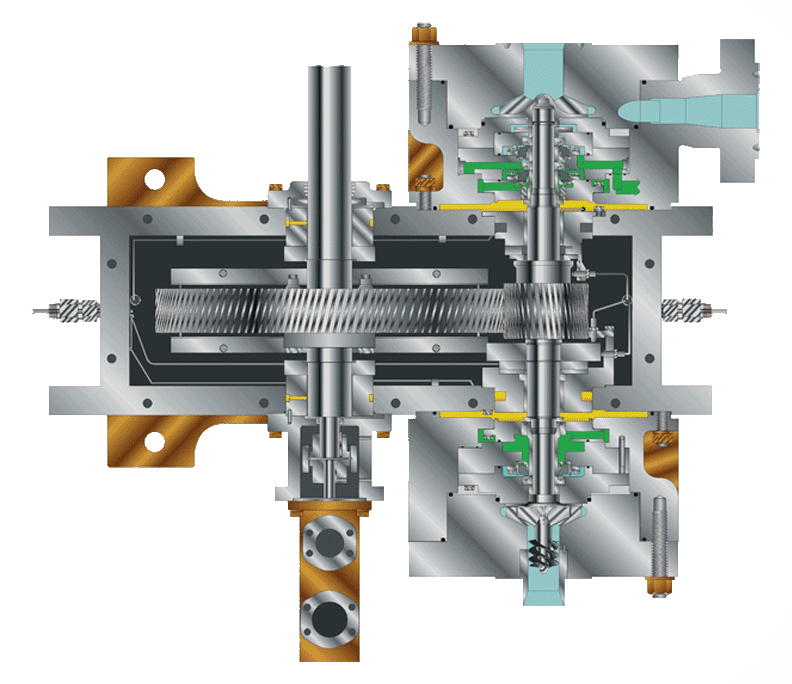

Sundyne HMP 5000 Overhung Impeller Integrally Geared Multi-Stage Pump

Heavy duty and extremely high pressure, the Sundyne API Style Integrally geared multi-stage pump

Sundyne integrally gear driven multi-stage pumps are utilized by process engineers to manufacture fertilizer, urea and PTA. These pumps are able to safely reach extremely high pressures and will run reliably for 5 years without an overhaul. Up to four overhung impeller pump stages are powered by a single gearbox and motor resulting in energy and space savings. Sundyne multi-stage pumps generally utilize only 25% of the space and require much less maintenance than between bearing pumps and generate extremely high pressures.

Unlike conventional multi-stage pumps, Sundyne computer tailored hydraulics place the B.E.P. (best efficiency point) at the rated point resulting in optimum efficiency.  An added benefit is reduced end-of-curve horsepower, allowing for smaller driver sizes resulting in energy savings.

  • Flows to 660 gpm (150 m³/hr)
  • Heads to 14,500 ft (4,420 m)
  • Suction Pressure 1,000 psi (70 bar)
  • Temperature Range -200 to 500°F (-130 to 260°C)

APPLICATIONS

  • Fertilizer manufacturing
  • PTA – Purified Terephthalic Acid
  • Urea processing

Proven to be reliable, safe, compact and efficient, Sundyne HMP 5000 integrally geared overhung pumps with up to 4 stages provide a number of extremely high-pressure operational benefits:

  • Multiple stage overhung pump according to API 610 – ISO 13709 design recommendations for integrally geared pumps
  • Maximized up time
  • Saves space-25% the size of competing multi-stage pumps
  • ATEX certified
  • Continuous operations for 5 years with no overhaul
  • Barske impeller low NPSH technology
  • Optimized pump engineering to meet the BEP – Best Efficiency Point to save energy through effiency
  • Safely reaches extremely high-pressures quickly

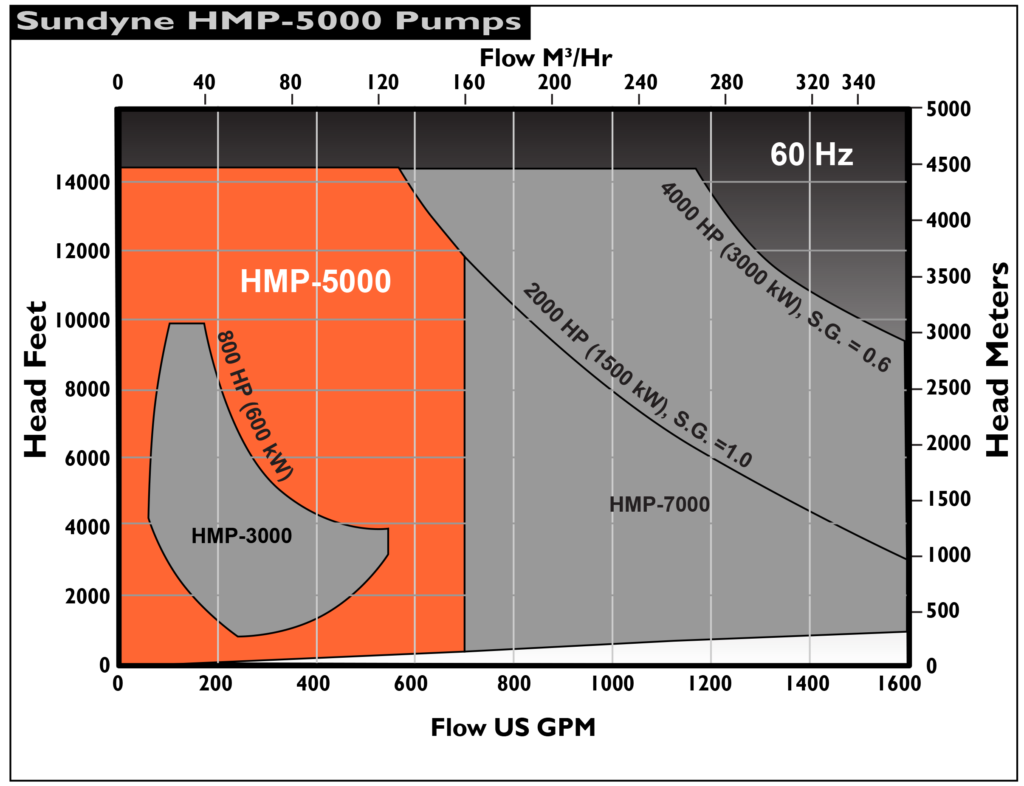

US 60 Hz

  • Heads to                                                  14,500 ft
  • Flows to                                                   660 gpm
  • Standards                                                API OH Style
  • Number of Stages                                     2
  • Maximum Motor Power                           2,500 HP
  • Temperature Range                                -200 to 500°F
  • Maximum Case Working Pressure          6,000 psi
  • Maximum Suction Pressure                     1,000 psi
  • Maximum Viscosity                                  700 cp
  • Solids Range                                           0.015″
  • Mounting Configuration                           Horizontal
  • Seal Configurations                                 Single, Double, Tandem
  • Available Inducer                                     Yes
  • Available Flanges      600#, 900#, 1500#, 2500# RF or RTJ
  • Suction and Discharge Size                    4″ x 4″

Metric 50 Hz

  • Heads to                                                  4,420 m
  • Flows to                                                   150 m3/hr
  • Standards                                                ISO and API OH Style
  • Number of Stages                                     2
  • Maximum Motor Power                           1,865 kW
  • Temperature Range                                -130 to 260°C
  • Maximum Case Working Pressure         414 bar
  • Maximum Suction Pressure                     70 bar
  • Maximum Viscosity                                 700 cp
  • Solids Range                                          400 microns
  • Mounting Configuration                           Horizontal
  • Seal Configurations                                 Single, Double, Tandem
  • Available Inducer                                    Yes
  • Available Flanges          600#, 900#, 1500#, 2500# RF or RTJ
  • Suction and Discharge Size                  4″ x 4″
