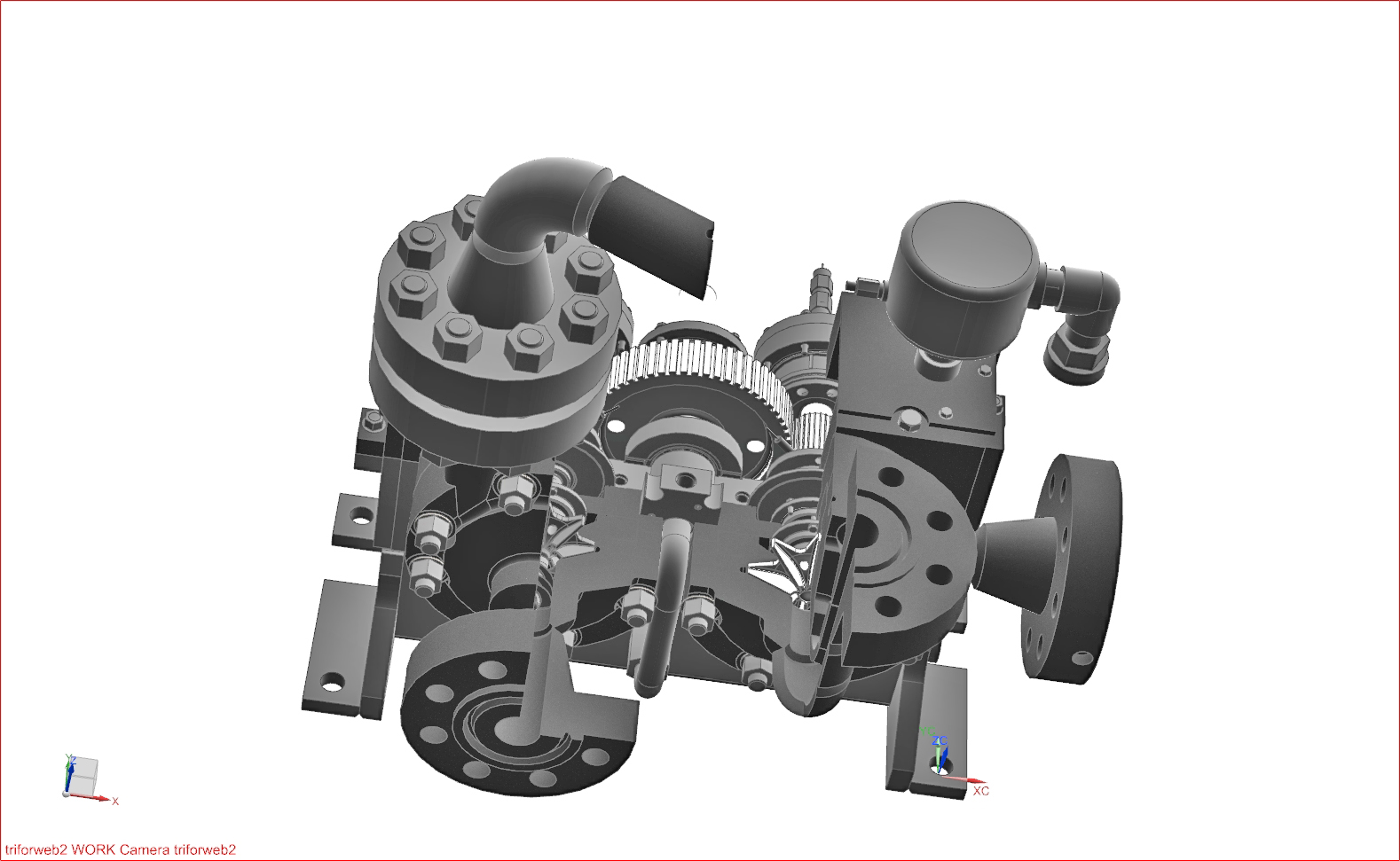

Sundyne HMP 3000 Overhung Impeller Integrally Geared Multi-Stage Pump

Heavy duty and extremely high pressure, the Sundyne overhung impeller integrally geared multi-stage pump

Sundyne integrally gear driven multi-stage pumps are utilized by process engineers to manufacture fertilizer, urea and PTA. These pumps are able to safely reach extremely high pressures and will run reliably for 5 years without an overhaul. Up to three pump stages are powered by a single gearbox and motor resulting in energy and space savings. Sundyne multi-stage pumps generally utilize only 25% of the space and require much less maintenance than between bearing pumps and generate extremely high pressures.

Unlike conventional multi-stage pumps, Sundyne computer tailored hydraulics place the B.E.P. (best efficiency point) at the rated point resulting in optimum efficiency.  An added benefit is reduced end-of-curve horsepower, allowing for smaller driver sizes resulting in energy savings.

  • Flows to 440 gpm (320 m³/hr)
  • Heads to 10,000 ft (2,135 m)
  • Suction Pressure 1,000 psi (71 kg/cm²)
  • Temperature Range -200 to 550°F (-130 to 288°C)

APPLICATIONS

  • Fertilizer manufacturing
  • PTA – Purified Terephthalic Acid
  • Urea processing

Proven to be reliable, safe, compact and efficient, Sundyne HMP 3000 OH6 integrally geared up to 3 stage pumps provide a number of operational benefits:

  • Two stage overhung pump according to ISO 13709/API 610 OH6 design recommendations for integrally geared pumps
  • Maximized up time
  • Saves space-25% the size of competing multi-stage pumps
  • ATEX certified
  • Continuous operations for 5 years with no overhaul
  • Barske impeller low NPSH technology
  • Optimized pump engineering to meet the BEP – Best Efficiency Point to save energy through effiency
  • Safely reaches extremely high-pressures quickly

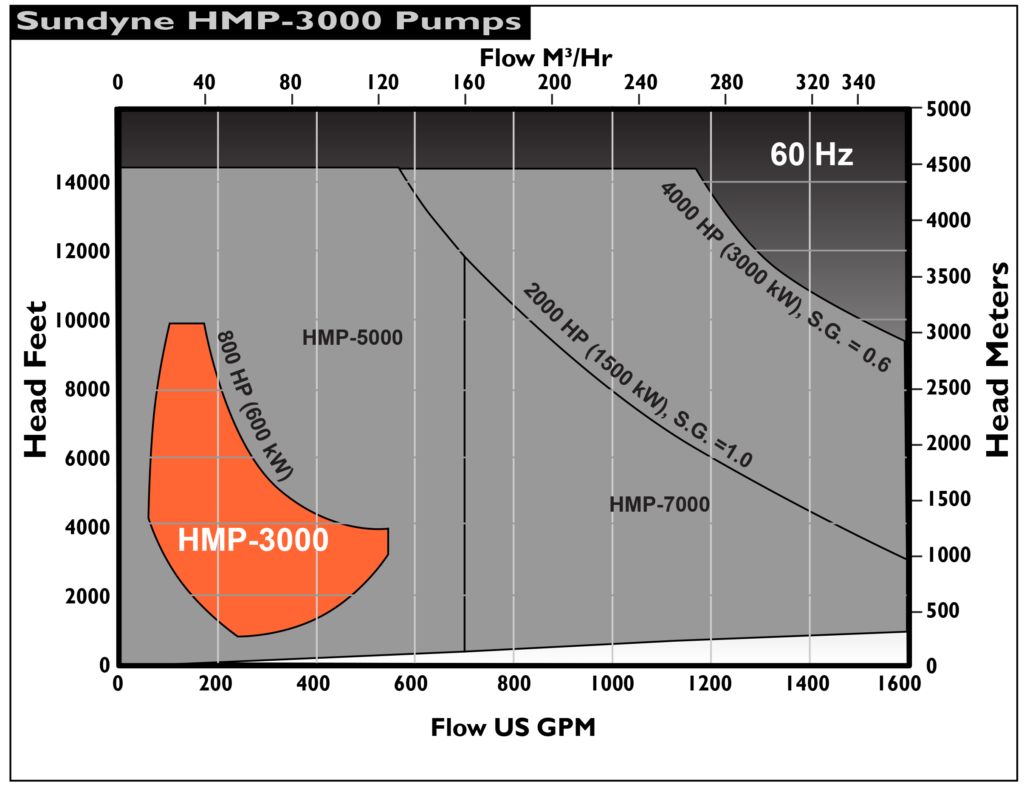

US 60 Hz

  • Heads to                                                  10,000 ft
  • Flows to                                                   440 gpm
  • Standards                                               API Style
  • Number of Stages                                  1, 2 or 3
  • Maximum Motor Power                           800 HP
  • Temperature Range                                -200 to 500°F
  • Maximum Case Working Pressure          3,750 psi
  • Maximum Suction Pressure                     425 psi
  • Maximum Viscosity                                  750 cp
  • Solids Range                                           0.015″, 400 microns
  • Mounting Configuration                           Horizontal
  • Seal Configurations                                 Single, Double, Tandem
  • Available Inducer                                    Yes
  • Available Flanges              300#, 600#, 900#, 1500# RF or RTJ
  • Suction and Discharge Sizes                 4″ x 3″

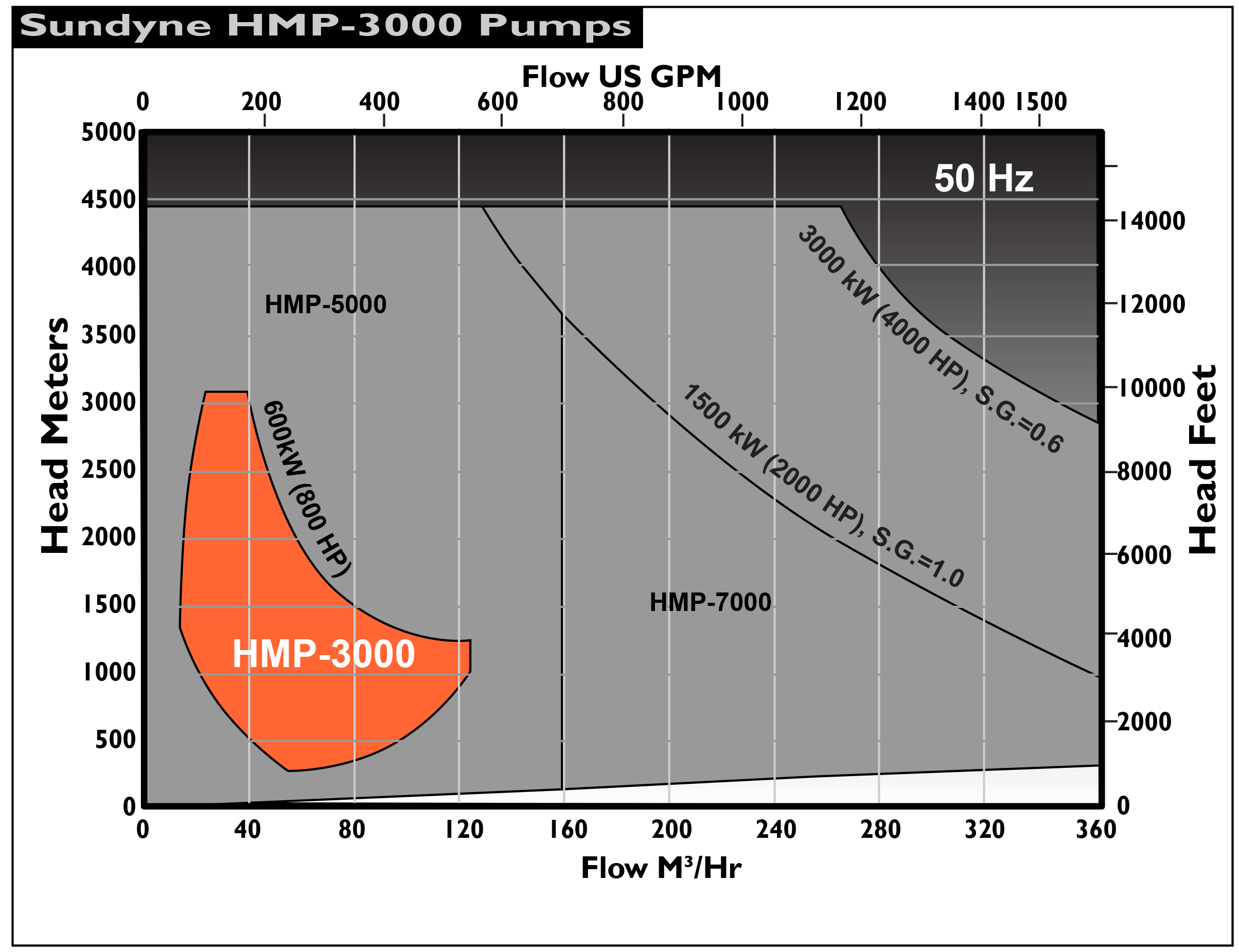

Metric 50 Hz

  • Heads to                                                  2,135 m
  • Flows to                                                   320 m3/hr
  • Standards                                                ISO Style
  • Number of Stages                                   1, 2, 3 or 4
  • Maximum Motor Power                           600 kW
  • Temperature Range                                -130 to 260°C
  • Maximum Case Working Pressure         264 kg/cm2
  • Maximum Suction Pressure                     30 kg/cm²
  • Maximum Viscosity                                 750 cp
  • Solids Range                                           0.381mm, 400 microns
  • Mounting Configuration                           Horizontal
  • Seal Configurations                                 Single, Double, Tandem
  • Available Inducer                                    Yes
  • Available Flanges              300#, 600#, 900#, 1500# RF or RTJ
  • Suction and Discharge Sizes                 4″ x 3″

About Sundyne

Sundyne sets the standard for centrifugal integrally geared pumps. Over the years, Sundyne has also acquired some of the industry’s leading brands. This combination has expanded the Sundyne product line, offering a wide range of fluid handling services and solutions.
