Sundyne LMV 331 OH6 Integrally Geared Pump

Safe, reliable and economical the Sundyne API 610, OH6, Integrally geared pump

Sundyne API 610, 11th Edition OH6 Integrally Gear Driven Pumps are engineered for critical high-head, low-flow, heavy-duty services required by process and rotating equipment engineers within the hydrocarbon, chemical, petrochemical, power generation, gas production, and specialty processing industries. Sundyne pumps are renowned for high suction pressure and a wide range of operating temperatures.

Unlike conventional multi-stage pumps, Sundyne computer tailored hydraulics place the B.E.P. (best efficiency point) at the rated point resulting in optimum efficiency.  An added benefit is reduced end-of-curve horsepower, allowing for smaller driver sizes resulting in energy savings.

  • Flows to 400 gpm (73 m³/hr)
  • Heads to 4,800 ft (1,348 m)
  • Suction Pressure 1,000 psi (71 kg/cm²)
  • Temperature Range -200 to 650°F (-130 to 340°C)

Multi-stage performance in a single stage pump

The vertical configuration of the integrally geared line of Sundyne pumps is specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.

APPLICATIONS

  • Feed pumps
  • Booster pumps
  • Bottoms pumps
  • Wash water pumps
  • Reflux pumps
  • Condensate pumps

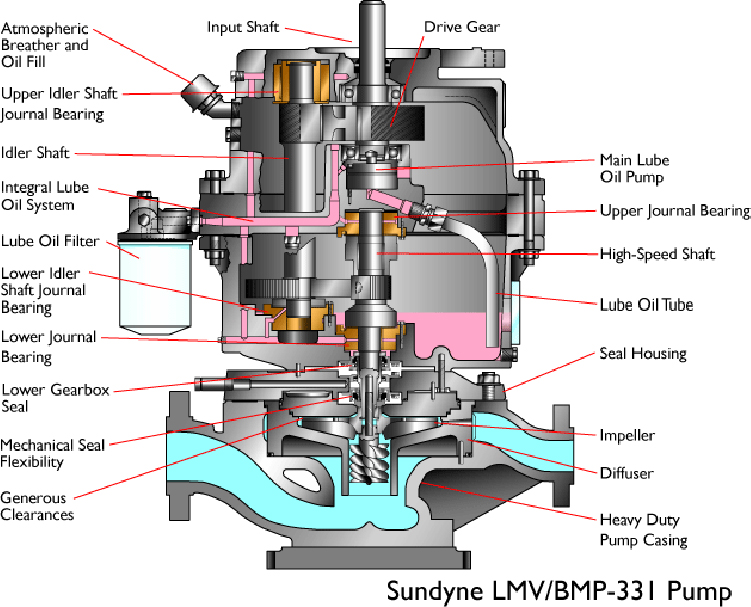

Proven to be reliable, safe, compact and efficient, Sundyne LMV 331 OH6 integrally geared pumps provide a number of operational benefits:

  • Single stage, vertical in-line overhung pump according to ISO 13709/API 610 OH6 design recommendations for integrally geared pumps
  • Maximized up time
  • Saves space-25% the size of competing horizontal pumps
  • ATEX certified
  • Continuous operations for 5 years with no overhaul
  • Barske impeller low NPSH technology
  • Optimized pump engineering to meet the BEP – Best Efficiency Point to save energy through effiency

US 60 Hz

  • Heads to                                                  4,800 ft
  • Flows to                                                   400 gpm
  • Standards                                               API 610 OH6
  • Maximum Motor Power                           350 HP
  • Temperature Range                                -200 to 650°F
  • Maximum Case Working Pressure          2,160 psi
  • Maximum Suction Pressure                     1,000 psi
  • Differential Head                                      6,300 ft
  • Maximum Viscosity                                  750 cp
  • Solids Range                                           0.015″, 400 microns
  • Mounting Configuration                           Vertical, Horizontal
  • Seal Configurations                                 Single, Double, Tandem
  • Available Inducer                                     Yes
  • Available Flanges                                    600# ANSI RF, 900# optional
  • Suction and Discharge Size                   3″ x 2″
  • API Plans       11, 12, 13, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62, J

Metric 50 Hz

  • Heads to                                                  1,400 m
  • Flows to                                                   91 m3/hr
  • Standards                                                API 610
  • Maximum Motor Power                           250 kW
  • Temperature Range                                -130 to 340°C
  • Maximum Case Working Pressure         155 kg/cm2
  • Maximum Suction Pressure                     71 kg/cm²
  • Differential Head                                      1,921 m
  • Maximum Viscosity                                 750 cp
  • Solids Range                                           0.381mm, 400 microns
  • Mounting Configuration                           Vertical, Horizontal
  • Seal Configurations                                 Single, Double, Tandem
  • Available Inducer                                    Yes
  • Available Flanges                                  600# ANSI RF, 900# optional
  • Suction and Discharge Size                   3″ x 2″
  • API Plans     11, 12, 13, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62, J

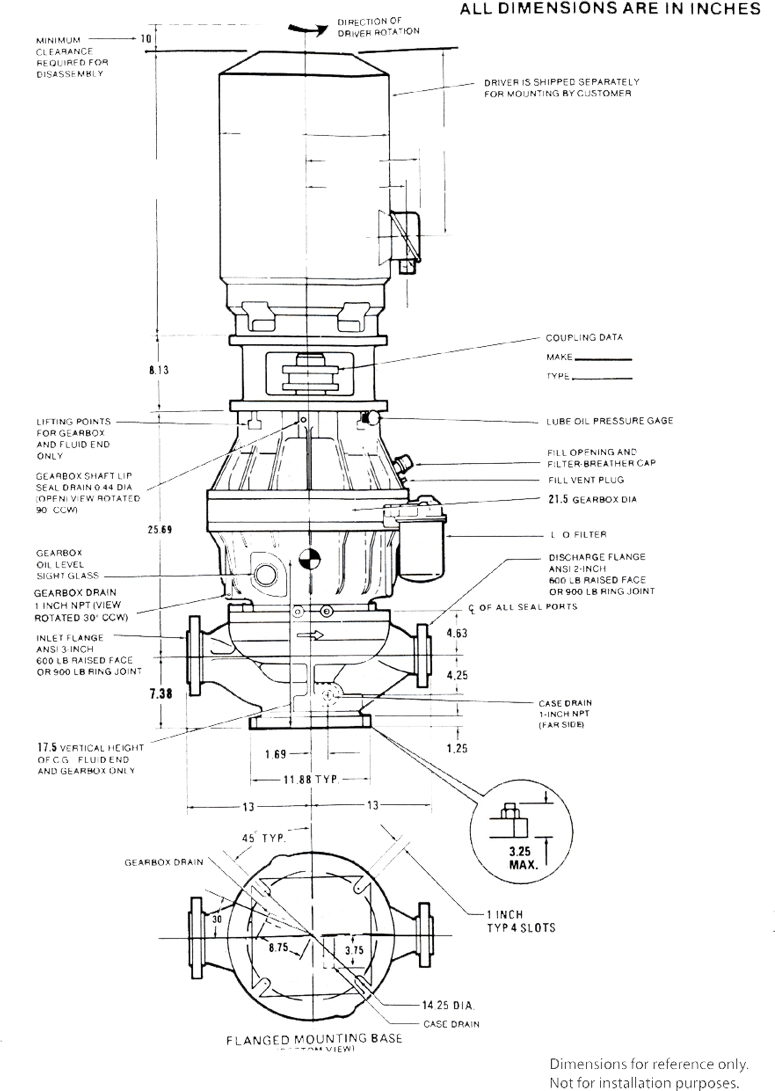

LMV 331 BUILD CODES

A

E

J

O (1)

W

API 610 BUILD (2)

S-5 (3)

A-7 (4)

S-8 (4)

N/A

S-9 (4)

Pump Case

C.S.

316 SS

C.S.

316 SS

Monel Clad C.S.

Case Studs

B-7

B-7

page17image58281728B-7 page17image58282880B-8M

K-Monel

Seal Housing

C.S.

316 SS

page17image58286720C.S. page17image58288448316 SS

Monel

Separator

316 SS

316 SS

316 SS

316 SS

Monel

Diffuser Insert

C.S.

316 SS

page17image58293248316 SS page17image58261696316 SS

Monel

Diffuser Cover

C.S.

316 SS

page17image58265536316 SS page17image58267264316 SS

Monel

Impeller

316 SS

316 SS

316 SS

316 SS

Monel

Impeller Bolt

316 SS

316 SS

page17image58273216316 SS page17image58717120316 SS

K-Monel

Inducer

316 SS

316 SS

316 SS

316 SS

Monel

Tab Washer

316 SS

316 SS

316 SS

316 SS

Monel

Shaft Sleeve

316 SS

316 SS

316 SS

17-4 PH

Monel

Throttle Bushing

316 SS

316 SS

page17image58384832316 SS page17image58385984316 SS

Monel

Metal Seal Parts

316 SS

page17image58388864316 SS page17image58390400316 SS

316 SS

Monel

Stationary Face

Binderless Carbon or Silicon Carbide

Rotating Face

page17image58363072Tungsten Carbide with Cobalt or Nickel Binderpage17image58364032

Shaft (all)

4140 Steel to 0° F, 15-5PH from 0° F to –240° F.

O-rings

As Required

  1. “O” build temperature range 0° to -240° F. Pressure capability is reduced due to strain hardened pump case studs. Contact Application Engineering.
  2. See Sundyne Corporation exceptions/clarifications to API 610, 11th edition for material requirements of pump parts.
  3. Impeller is upgraded to 316SS. A seal gland is not required because the seals mount in the seal housing. O-rings are used instead of a case gasket.
  4. A seal gland is not required because the seals mount in the seal housing. The pump shaft is AISI 4140 because it is not exposed to the fluid. O-rings are used instead of a case gasket.
