Sundyne LMV 313 OH6 Integrally Geared Pump

Safe, reliable and economical the Sundyne API 610, OH6, Integrally geared pump

Sundyne API 610, 11th Edition OH6 Integrally Gear Driven Pumps are engineered for critical high-head, low-flow, heavy-duty services required by process and rotating equipment engineers within the hydrocarbon, chemical, petrochemical, power generation, gas production, and specialty processing industries. Sundyne pumps are renowned for high suction pressure and a wide range of operating temperatures.

Unlike conventional multi-stage pumps, Sundyne computer tailored hydraulics place the B.E.P. (best efficiency point) at the rated point resulting in optimum efficiency.  An added benefit is reduced end-of-curve horsepower, allowing for smaller driver sizes resulting in energy savings.

  • Flows to 1,040 gpm (73 m³/hr)
  • Heads to 1,790 ft (1,348 m)
  • Suction Pressure 500 psi (71 kg/cm²)
  • Temperature Range -200 to 650°F (-130 to 340°C)

Multi-stage performance in a single stage pump

The vertical configuration of the integrally geared line of Sundyne pumps is specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.

APPLICATIONS

  • Feed pumps
  • Booster pumps
  • Bottoms pumps
  • Wash water pumps
  • Reflux pumps
  • Condensate pumps

Proven to be reliable, safe, compact and efficient, Sundyne LMV 313 OH6 integrally geared pumps provide a number of operational benefits:

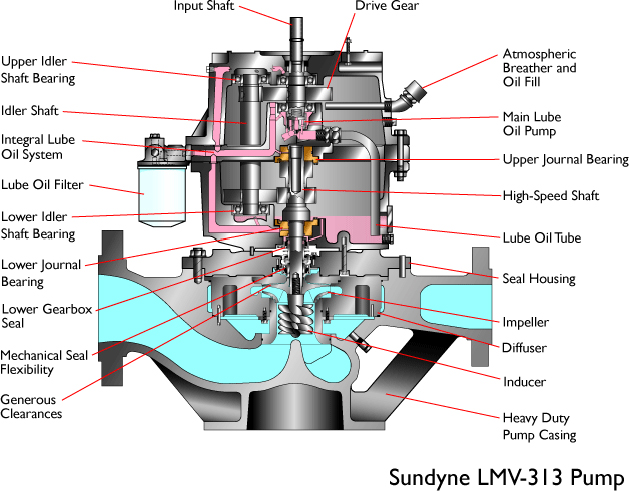

  • Single stage, vertical in-line overhung pump according to ISO 13709/API 610 OH6 design recommendations for integrally geared pumps
  • Maximized up time
  • Saves space-25% the size of competing horizontal pumps
  • ATEX certified
  • Continuous operations for 5 years with no overhaul
  • Barske impeller low NPSH technology
  • Optimized pump engineering to meet the BEP – Best Efficiency Point to save energy through effiency

US 60 Hz

  • Heads to                                                  1,790 ft
  • Flows to                                                   1,040 gpm
  • Standards                                               API 610 OH6
  • Maximum Motor Power                           200 HP
  • Temperature Range                                -200 to 650°F
  • Maximum Case Working Pressure          1,440 psi
  • Maximum Suction Pressure                     500 psi
  • Differential Head                                      1,790 ft
  • Maximum Viscosity                                  750 cp
  • Solids Range                                           0.015″, 400 microns
  • Mounting Configuration                           Vertical
  • Seal Configurations                                 Single, Double, Tandem
  • Available Inducer                                    Yes
  • Available Flanges                                    600# ANSI RF
  • Suction and Discharge Size                   6″ x 4″
  • API Plans    11, 12, 13, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62, J

Metric 50 Hz

  • Heads to                                                  437 m
  • Flows to                                                   181 m3/hr
  • Standards                                                API 610
  • Maximum Motor Power                           150 kW
  • Temperature Range                                -130 to 340°C
  • Maximum Case Working Pressure         103 kg/cm2
  • Maximum Suction Pressure                     36 kg/cm²
  • Differential Head                                      437 m
  • Maximum Viscosity                                 750 cp
  • Solids Range                                           0.381mm, 400 microns
  • Mounting Configuration                           Vertical
  • Seal Configurations                                 Single, Double, Tandem
  • Available Inducer                                      Yes
  • Available Flanges                                      600# ANSI RF
  • Suction and Discharge Size                     6″ x 4″
  • API Plans     11, 12, 13, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62, J

LMV 313 BUILD CODES

A

E

J

O (1)

API 610 BUILD (2)

S-5 (3)

A-7 (4)

S-8 (4)

N/A

Pump Case

C.S.

316 SS

C.S.

316 SS

Case Studs

B-7

B-7

B-7

B-8M

Seal Housing

C.S. page37image225280316 SS page37image226240C.S.

316 SS

Separator

316 SS

316 SS

316 SS

316 SS

Diffuser Insert

C.S. page37image51072316 SS page37image52032316 SS

316 SS

Diffuser Cover

C.S.

316 SS

316 SS

316 SS

Impeller

316 SS 316 SS 316 SS

316 SS

Impeller Bolt

316 SS

316 SS

316 SSpage37image62400

316 SS

Inducer

316 SS

316 SS

316 SS

316 SS

Tab Washer

page37image32960316 SSpage37image33920 page37image34688316 SSpage37image35264 page37image35648316 SS

316 SS

Shaft Sleeve

316 SS

316 SS

316 SS

17-4 PH

Throttle Bushing

page37image39872316 SSpage37image40448

316 SS

316 SS

316 SS

Metal Seal Parts

316 SSpage37image44864

316 SS

316 SS

316 SS

Stationary Face

Binderless Carbon or Silicon Carbide

Rotating Face

page37image17152

Tungsten Carbide with Cobalt or Nickel Binder

Shaft (all)

4140 Steel to 0° F, 15-5PH from 0° F to –240° F

O-rings

As Required

  1. “O” build temperature range 0° to –240° F. Pressure capability is reduced due to strain hardened pump case studs. Contact Application Engineering.
  2. See Sundyne Corporation exceptions/clarifications to API 610, 11th edition for material requirements of pump parts.
  3. Impeller is upgraded to 316SS. A seal gland is not required because the seals mount in the seal housing. O-Rings are used instead of a case gasket.
  4. A seal gland is not required because the seals mount in the seal housing. The pump shaft is AISI 4140 because it is not exposed to the fluid. O-Rings are used instead of a case gasket.
