HMD Kontro HPGSP – High Pressure OH2 API 685 General Service Petroleum Sealless Magnetic Drive Pump

HMD HPGSP

Peace of mind for reliable, safe high-pressure processing and handling of hazardous and valuable hydrocarbons and chemicals

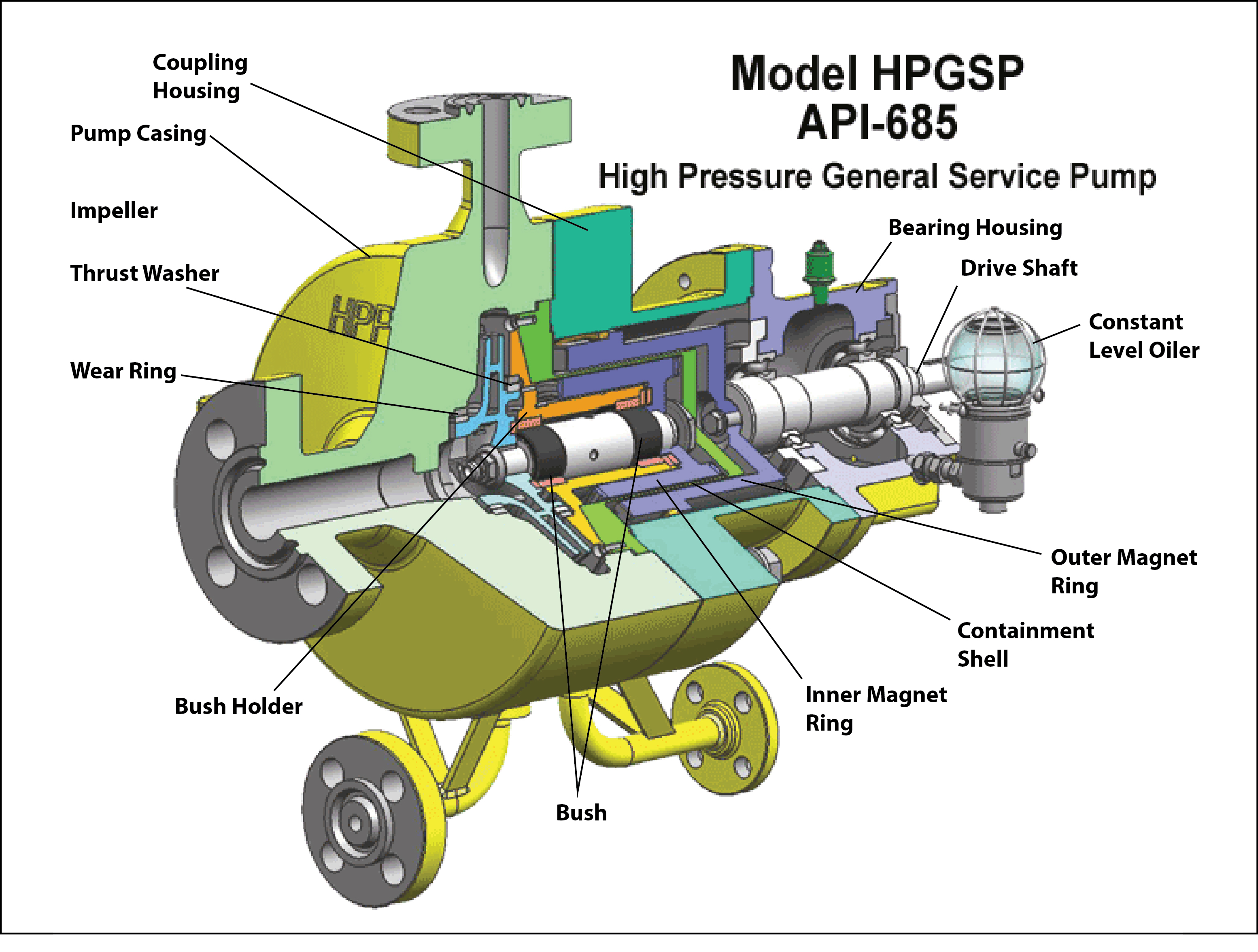

The HPGSP magnetic drive sealless pump is at the top end of high pressure pumps for oil and gas, petrochemical and chemical industries. Capable of easily handling system pressures up to 2680 psi and higher, dependent upon temperature extremes, these high pressure pumps are exceptionally versatile yet safe and secure. Built to API 685 specifications, the separate mounted design is available in eleven hydraulic sizes and two basic frame sizes to meet power requirements.

  • A high pressure version of the HMD Kontro sealless magnetic drive GSP pump
  • Handles system pressures up to 2680 psi. Higher pressures possible dependent on temperature
  • Exceptionally versatile, safe and secure
  • Modular design based on established and readily available components
  • Flows up to 1,500 GPM (290 m³/hr)
  • Heads to 700 ft (210m)
  • Temperature Range -150 to 500°F (-100 to 260°C)

The heavy duty line of API sealless magnetic drive, end suction centrifugal pumps complies with specifications required by the oil, gas, petroleum and heavy chemical industries. The HPGSP is typically used in toxic, aggressive, hot, crystallizing and high value processes.

APPLICATIONS

Chemical Processing

  • Chlor-Alkali
  • Pesticides
  • Insecticides
  • Herbicides
  • Fertilizer

Hydrocarbon Processing

  • Sour water
  • Sulfuric acid
  • Benzene
  • Xylene
  • Toluene

Upstream

  • Produced water
  • LACT

Aquatic and Marine

  • Seawater
  • Caustic

Battery Manufacturing

  • Sulfuric acid
  • Potassium hydroxide

Biofuels

  • Bio-diesel
  • Ethanol

Food and Beverage

  • Fragrances

Mining

  • Sodium cyanide
  • Sulfuric acid
  • Hydrochloric acid

Pharmaceutical

  • Silicon oil (Heat transfer fluid)

Pulp and Paper

  • Chlorine
  • Sulfuric Acid

Semiconductor Manufacturing

  • Hydrofluoric acid
  • Sulfuric acid

Steel Finishing, Pickling, Etching and Plating

  • Hydrochloric acid

Water and Wastewater Treatment

  • Sodium hypochlorite
  • Sodium hydroxide
  • Sulfuric acid
  • Ferric Chloride

Our pumps combine cutting edge technology with over seventy years of expertise and experience to give you complete piece of mind.



Product Security – Magnetic drive sealless pumps are the safest and most robust means for liquid transfer. By eliminating the seal, the primary opportunities for leaks associated with traditional sealed pumps are completely removed.

Efficiency – By improving performance and reducing maintenance calls, sealless magnetic drive pumps can dramatically lower downtime and lost production.  In sum, this equates to maximized efficiency that can be seen on your bottom line.

Reliability – Sealless magnetic drive pumps have proven their reliability in even the most severe climate conditions, from the frozen tundra of Siberia to the deserts of the Middle East and the humid climes of Louisiana’s refineries.  In fact, there are Sundyne HMD Kontro pumps that have been in operation for over 30 years and are still running today.

Safety – Sundyne HMD Kontro sealless magnetic drive pumps are manufactured to conform to international design and safety standards, including ATEX, ISO, API and ANSI requirements.  Plus, with no mechanical seals to leak hazardous chemicals, these pumps offer a clear choice for process industry professionals who regularly deal with volatile or high value materials.

Cost-effective – Sealless magnetic drive pumps require less monitoring and maintenance than traditional sealed designs, equating to substantial savings over the life of the pump.

Service – Global service centers keep HMD Kontro sealless magnetic drive pumps operating with peak performance.  Standard pumps and parts are available from the factory and in the field.

HMD Kontro Model

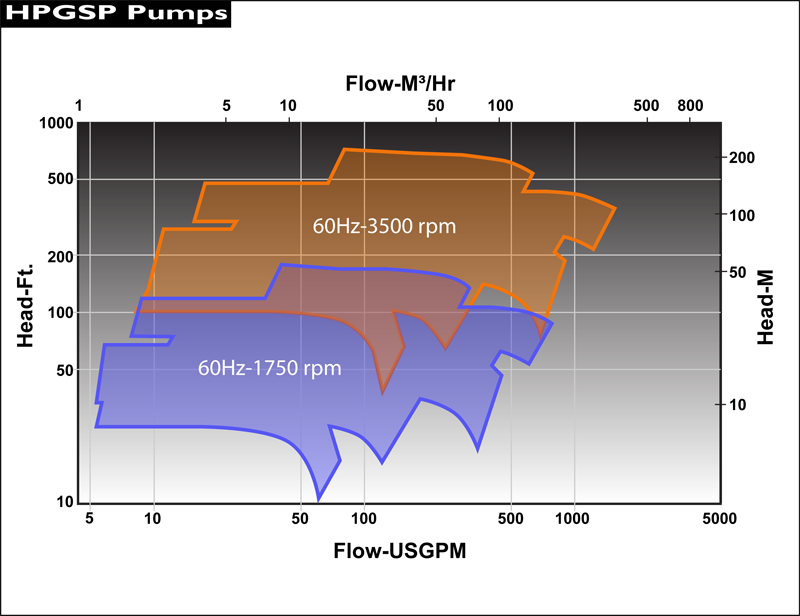

US 60 Hz

  • Heads to                                                  1,146 ft
  • Flows to                                                   3,647 gpm
  • Maximum Motor Power                           535 HP
  • Temperature Range                                -40 to 660°F
  • Maximum Case Working Pressure          580 psi
  • Hydrotest Pressure                                  870 psi
  • Maximum Viscosity                                  200 centistokes
  • Solids Range                  Maximum of 5% w/w less than 150 microns
  • Motor Details                                        Industry standard
  • Mounting Configuration          Horizontal close and long coupled
  • Dimensional Standards                         API 610 OH2, ISO 13709
  • Number of Available Hydraulics             28
  • Available Flanges                                   150#/300# RF

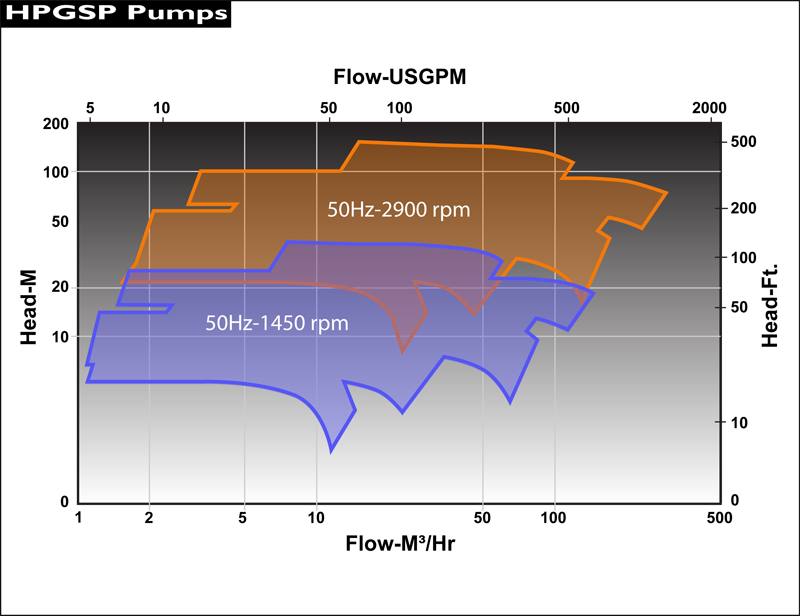

Metric 50 Hz

  • Heads to                                                  245 m
  • Flows to                                                   3,467 m3/hr
  • Maximum Motor Power                           400 kW
  • Temperature Range                                -40 to 350°C
  • Maximum Case Working Pressure         19.3 kg/cm2
  • Hydrotest Pressure                               41 kg/cm2
  • Maximum Viscosity                                 200 centistokes
  • Solids Range             Maximum of 5% w/w less than 150 microns
  • Motor Details                                      Industry Standard
  • Mounting Configuration          Horizontal close and long coupled
  • Dimensional Standards                       ISO 13709
  • Number of available hydraulics.         28
  • Available Flanges                                   150#/300# RF

Standard materials of construction

  • A-8 and S-5 with silicon carbide internal bearings and spiral wound gaskets.

Other material options are available on request

  • Duplex Stainless Steel
  • Alloy 20 and Alloy C276
  • Various flange options are available as standard

POWER MONITOR

Installed in the Motor Control Center (MCC), a power monitor measures the power required to operate the pump.  By setting High and Low trip points, the power monitor is the perfect solution for protecting your pump from:

  • Dry running
  • Low flow operation
  • High flow operation
  • Severe cavitation
  • Magnet de-coupling
Motor Control Center

New ZeroLoss Containment Shell

Reduces Power Losses in the Pump to Zero
Excellent energy savings can now be made thanks to the introduction of the ZeroLoss containment shell for larger pumps. The elimination of eddy current losses can result in up to a 20% saving in power consumption, further enhancing the benefits and green credentials of magnetic drive technology from Sundyne HMD Kontro.

The advantage increases in proportion with the magnetic coupling size and is particularly appropriate for larger pumps, making the magnetic drive option even more attractive because through life costs are reduced further. Lower powerconsumption not only results in reduced running costs but alsopotentially provides lower initial capital costs, as smaller motors can be specified.

In addition, installation costs can be reduced as lower-rated cabling may be required, and there are space-savings from the ability to use a smaller base plate for the pump and motor combination.

New Zero Loss

LONG COUPLED

Long coupled configurations conform to API 685, API 610, ASME/ANSI B73.3 and ISO 2858 dimensions for easy replacement of mechanically sealed pumps (utilizing same baseplate, coupling, guard and motor).

HMD HPGSP

SECONDARY CONTROL & CONTAINMENT

HMD Kontro Sealless magnetic drive pumps are available with secondary control devices to restrict any leaks. Mechanical devices are fitted to the drive shaft assembly and are activated in the unlikely event of containment shell failure. Also, the pump coupling housing is fitted with gaskets to eliminate any leaks across the joining faces.



HMD Kontro Model

Solids Handling

All HMD Kontro pumps, as standard, can handle up to 5% hardsolids and 150 microns diameter. The solid size can increase by fitting a self-cleaning in line filter, to 8% solids and 250 microns.

For larger solids HMD Kontro can provide pumps with a clean flush system or filter built into the flush pipework.

Solids Handling
