HMD Kontro CS – Chemical Service Sealless Magnetic Drive Pumps

A unique sealless magnetic drive pump for heat transfer in hot oil systems



Isolating the pump from the heat source has always been essential in a hot oil system – until now. Thanks to its unique torque ring, the CS pump from HMD Kontro requires no cooling fluids or heat exchangers during operation. The pump is totally self venting and the magnetic coupling is immersed in the hot oil. Not only that, but the torque ring design offers a built-in soft start for viscous liquids, and the energy created adds to the efficiency of the system.

Simple to operate and maintain, cost-effective to run and capable of operating up to 850°F without cooling – all this makes the Sundyne HMD Kontro CS pump the ideal choice.

  • Ideal for heat transfer liquids.
  • Sealless design – total product containment.
  • No product cooling required for temperatures up to 850°F.
  • One joint casing/containment shroud/shell.
  • Fully confined to eliminate ‘blowout’ risk.
  • Torque ring drive positively contributes to the efficiency of the hot oil system.
  • Built-in soft start feature.
  • Ideal for viscous start up.
  • Flows up to 1,760 GPM (400 m³/hr)
  • Heads to 490 ft (150 m)
  • Temperature Range -112 to 850°F (-80 to 450°C)

The heavy duty line of chemical service sealless magnetic drive, end suction centrifugal pumps complies with specifications required by the oil, gas, petroleum and heavy chemical industries. The CS is typically used in toxic, aggressive, hot, crystallizing and high value processes.

APPLICATIONS

Chemical Processing

  • Chlor-Alkali
  • Pesticides
  • Insecticides
  • Herbicides
  • Fertilizer

Hydrocarbon Processing

  • Sour water
  • Sulfuric acid
  • Benzene
  • Xylene
  • Toluene

Upstream

  • Produced water
  • LACT

Aquatic and Marine

  • Seawater
  • Caustic

Battery Manufacturing

  • Sulfuric acid
  • Potassium hydroxide

Biofuels

  • Bio-diesel
  • Ethanol

Food and Beverage

  • Fragrances

Mining

  • Sodium cyanide
  • Sulfuric acid
  • Hydrochloric acid

Pharmaceutical

  • Silicon oil (Heat transfer fluid)

Pulp and Paper

  • Chlorine
  • Sulfuric Acid

Semiconductor Manufacturing

  • Hydrofluoric acid
  • Sulfuric acid

Steel Finishing, Pickling, Etching and Plating

  • Hydrochloric acid

Water and Wastewater Treatment

  • Sodium hypochlorite
  • Sodium hydroxide
  • Sulfuric acid
  • Ferric Chloride

Our pumps combine cutting-edge technology with over seventy years of expertise and experience to give you complete piece of mind.



Product Security – Magnetic drive sealless pumps are the safest and most robust means for liquid transfer. By eliminating the seal, the primary opportunities for leaks associated with traditional sealed pumps are completely removed.

Efficiency – By improving performance and reducing maintenance calls, sealless magnetic drive pumps can dramatically lower downtime and lost production.  In sum, this equates to maximized efficiency that can be seen on your bottom line.

Reliability – Sealless magnetic drive pumps have proven their reliability in even the most severe climate conditions, from the frozen tundra of Siberia to the deserts of the Middle East and the humid climes of Louisiana’s refineries.  In fact, there are Sundyne HMD Kontro pumps that have been in operation for over 30 years and are still running today.

Safety – Sundyne HMD Kontro sealless magnetic drive pumps are manufactured to conform to international design and safety standards, including ATEX, ISO, API and ANSI requirements.  Plus, with no mechanical seals to leak hazardous chemicals, these pumps offer a clear choice for process industry professionals who regularly deal with volatile or high value materials.

Cost-effective – Sealless magnetic drive pumps require less monitoring and maintenance than traditional sealed designs, equating to substantial savings over the life of the pump.

Service – Global service centers keep HMD Kontro sealless magnetic drive pumps operating with peak performance.  Standard pumps and parts are available from the factory and in the field.

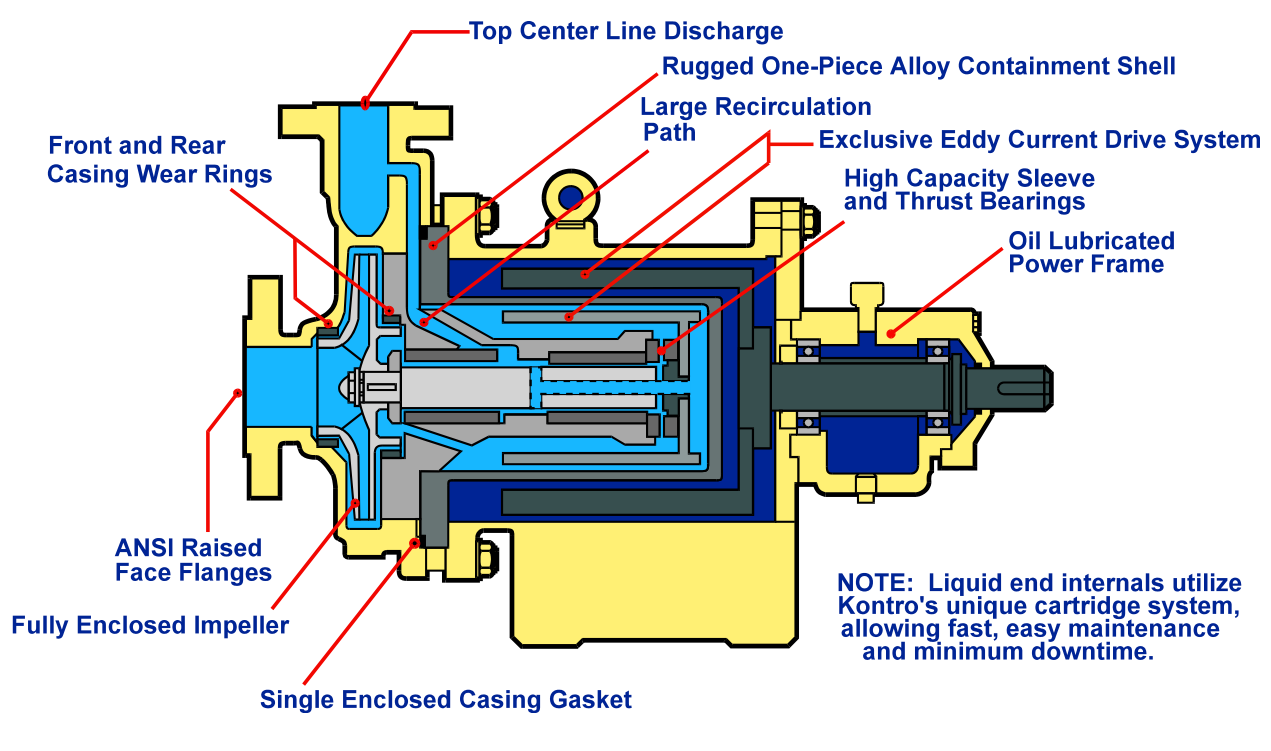

HMD Kontro Model

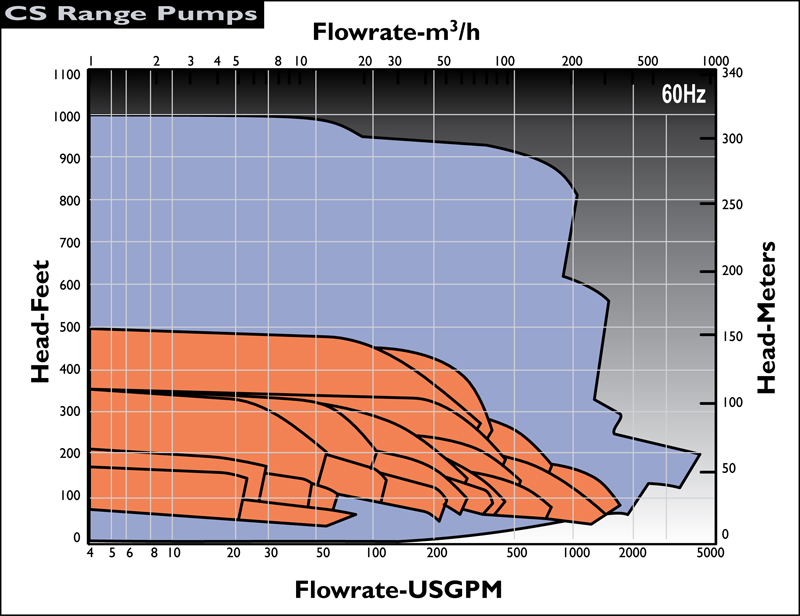

US 60 Hz

  • Heads to                                                  1,146 ft
  • Flows to                                                   3,647 gpm
  • Maximum Motor Power                           535 HP
  • Temperature Range                                -112 to 850°F
  • Maximum Case Working Pressure          580 psi
  • Hydrotest Pressure                                  870 psi
  • Maximum Viscosity                                  200 centistokes
  • Solids Range                 Maximum of 5% w/w less than 150 microns
  • Motor Details                                           Industry standard
  • Mounting Configuration               Horizontal close and long coupled
  • Dimensional Standards                         API 610 OH2, ISO 13709
  • Number of Available Hydraulics           28
  • Available Flanges                                   150#/300# RF

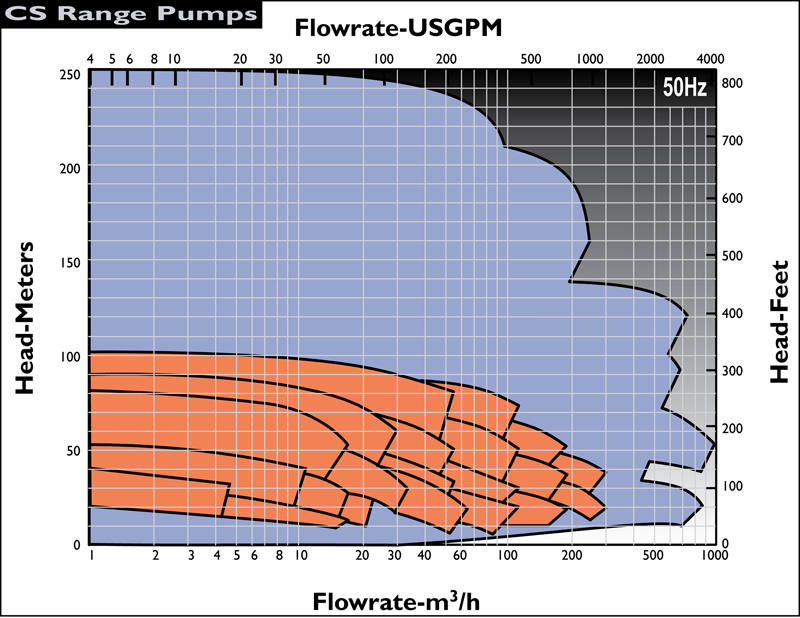

Metric 50 Hz

  • Heads to                                                  245 m
  • Flows to                                                   3,467 m3/hr
  • Maximum Motor Power                           400 kW
  • Temperature Range                                -40 to 350°C
  • Maximum Case Working Pressure         19.3 kg/cm2
  • Hydrotest Pressure                               41 kg/cm2
  • Maximum Viscosity                                 200 centistokes
  • Solids Range                 Maximum of 5% w/w less than 150 microns
  • Motor Details                                   Industry Standard
  • Mounting Configuration            Horizontal close and long coupled
  • Dimensional Standards                       ISO 13709
  • Number of available hydraulics.                28
  • Available Flanges                                   150#/300# RF

Standard materials of construction

  • Stainless steel with silicon carbide internal bearings.

Other material options are available on request

  • Alloy 20, C or B with silicon carbide/carbon bearings
  • PTFE gaskets are available
  • Various flange options are available as standard.

POWER MONITOR

Installed in the Motor Control Center (MCC), a power monitor measures the power required to operate the pump.  By setting High and Low trip points, the power monitor is the perfect solution for protecting your pump from:

  • Dry running
  • Low flow operation
  • High flow operation
  • Severe cavitation
  • Magnet de-coupling
Motor Control Center

New ZeroLoss Containment Shell

Reduces power losses in the pump to zero
Excellent energy savings can now be made thanks to the introduction of the ZeroLoss containment shell for larger pumps. The elimination of eddy current losses can result in up to a 20% saving in power consumption, further enhancing the benefits and green credentials of magnetic drive technology from Sundyne HMD Kontro.

The advantage increases in proportion with the magnetic coupling size and is particularly appropriate for larger pumps, making the magnetic drive option even more attractive because through life costs are reduced further. Lower power consumption not only results in reduced running costs but also potentially provides lower initial capital costs, as smaller motors can be specified.

In addition, installation costs can be reduced as lower-rated cabling may be required, and there are space-savings from the ability to use a smaller base plate for the pump and motor combination.

New Zero Loss

LONG COUPLED

Long coupled configurations conform to API 685, API 610, ASME/ANSI B73.3 and ISO 2858 dimensions for easy replacement of mechanically sealed pumps (utilizing same baseplate, coupling, guard and motor).

HMD HPGSP

SECONDARY CONTROL & CONTAINMENT

HMD Kontro Sealless magnetic drive pumps are available with secondary control devices to restrict any leaks. Mechanical devices are fitted to the drive shaft assembly and are activated in the unlikely event of containment shell failure. Also, the pump coupling housing is fitted with gaskets to eliminate any leaks across the joining faces.



HMD Kontro Model

Solids Handling

All HMD Kontro pumps, as standard, can handle up to 5% hardsolids and 150 microns diameter. The solid size can increase by fitting a self-cleaning in line filter, to 8% solids and 250 microns.

For larger solids HMD Kontro can provide pumps with a clean flush system or filter built into the flush pipework.

Solids Handling
