Sundyne LMC Vertical Integrally Geared Process Gas Compressors

Reliable and economical, the original fit-for-purpose Sundyne vertical integrally geared compressor

Process gas compressors are the heart of the process. Their reliability directly impacts the productivity and the efficiency of the midstream, hydrocarbon processing or chemical plant.

The Sundyne LMC – Line Mounted Vertical Compressor line features single-stage integrally geared centrifugal designs that process engineers utilize for fit-for-purpose applica­tions including mole sieve dehydration, regeneration of the demethanizer, waste gas, hydrogen recycle and specialty chemical production.  Each compressor is custom built to provide pulsa­tion- and vibration-free operation, and to deliver oil-free process gas with zero emissions.

  • Flows to 850 acfm (1,450 AM³/hr)
  • Maximum working pressure 1,440 psi (100 bar)

NACE compliant Sundyne compressors do not rust or corrode.  Each unit is engineered in accordance with industry standards, and is designed to run continuously for 5 years without the need for costly maintenance or over-hauls.

Sundyne gas compressors provide the performance envelope, the feature set, the reliability ratings and the uncompromising efficiency needed to address the Best Efficiency Point (BEP) for any process gas application.

APPLICATIONS

  • Mole sieve dehydration
  • Regeneration of the demethanizer
  • Waste gas
  • Hydrogen recycle
  • Specialty chemical production

Proven to be reliable, safe, compact and efficient, Sundyne LMC line of vertical integrally geared compressors provide a number of operational benefits:

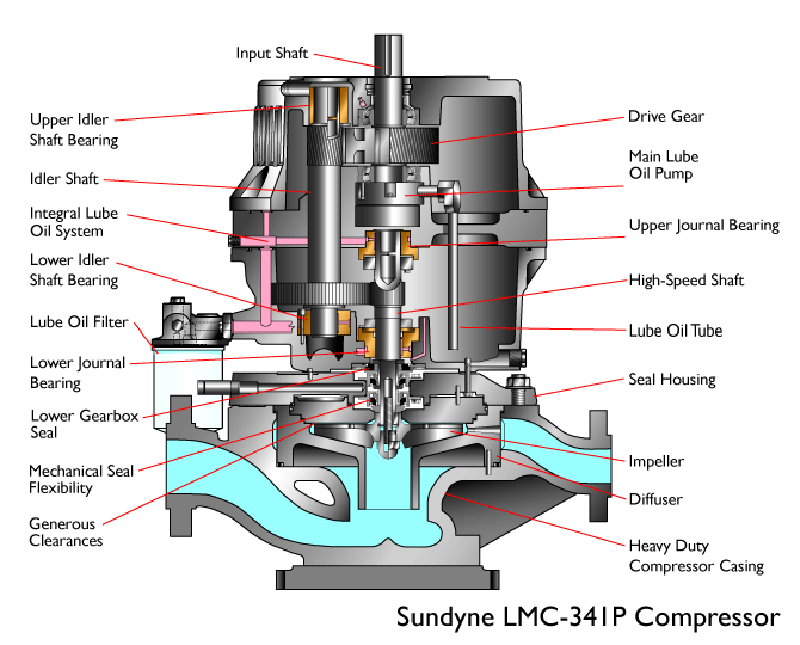

  • Single stage, vertical in-line overhung integrally geared compressor
  • Maximized up time
  • Saves space-25% the size of competing reciprocating, barrel, rotary screw and diaphragm compressors
  • Continuous operations for 5 years with no overhaul
  • Barske impeller low NPSH technology
  • Optimized compressor engineering to meet the BEP – Best Efficiency Point to save energy through efficiency

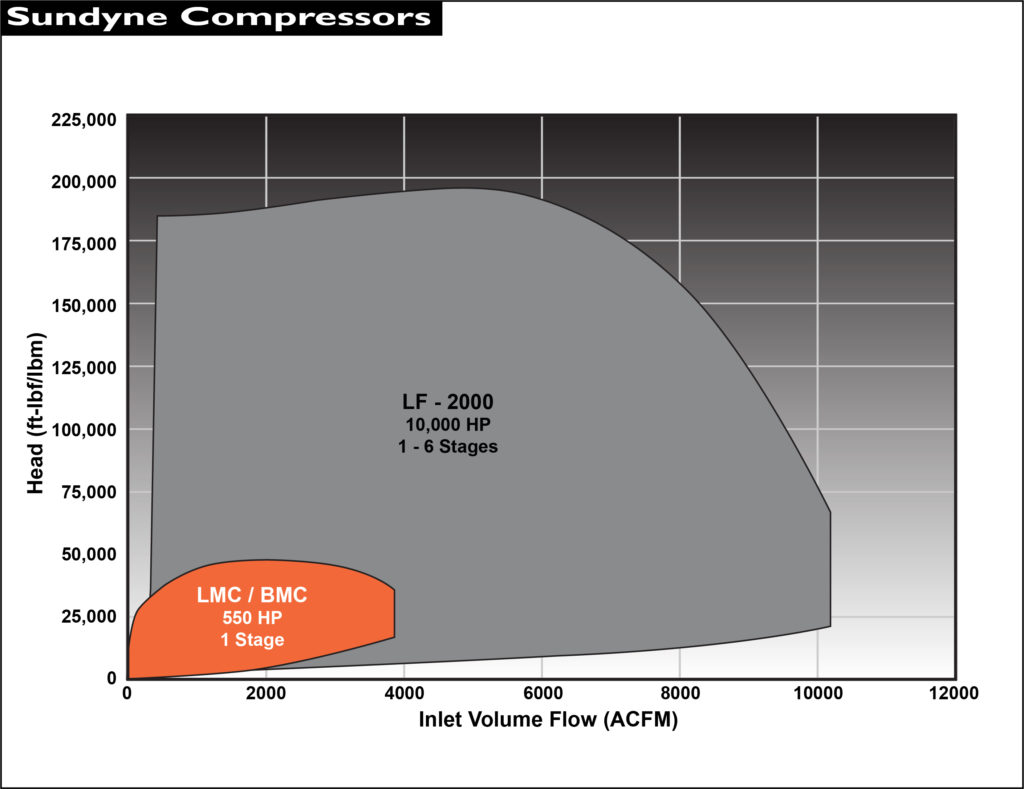

US 60 Hz

  • Maximum Flow                                            to 3,550 acfm
  • Maximum Speed                                         34,200 rpm @ 60Hz
  • Maximum Working Pressure                      1,440 psi
  • Temperature Range                                    -200 to 500°F
  • Maximum Motor Power                               400 HP
  • Hydro Test Pressure                                    1.5 X working pressure
  • Minimum Case Thickness                           .625″ and .75″
  • Corrosion Allowance                                   .125″
  • Impeller Clearance                                      .03″ to .05″
  • Shaft Diameter at Bearings                         1.5″
  • Mechanical Seal Sizes – Outboard             1.25″ and 1.5″
  • Mechanical Seal Sizes – Inboard                1.5″
  • Mounting                                                      Vertical – Mounting Options
  • Flanges            600# ANSI RF Standard, Other Ratings Available
  • Suction Flange                                             3″, 6″ and 8″
  • Discharge Flange                                         2″, 4″ and 6″
  • Gearbox Oil Temp Range                          120 to 180°F
  • Gearbox Lubricant                  ISO VG-46 General Purpose Oil
  • Gearbox Sump Capacity                             7 Quarts
  • Gearbox Lube System                                 Pressurized
  • Gears             Hardened and precision ground, helical and/or spur
  • Input/Idler Bearings  Deep groove, angular or solid journal as required
  • Output Bearings   Solid journal or tilt pad thrust and radial as required
  • Coupling                               Standard flexible or spacer type

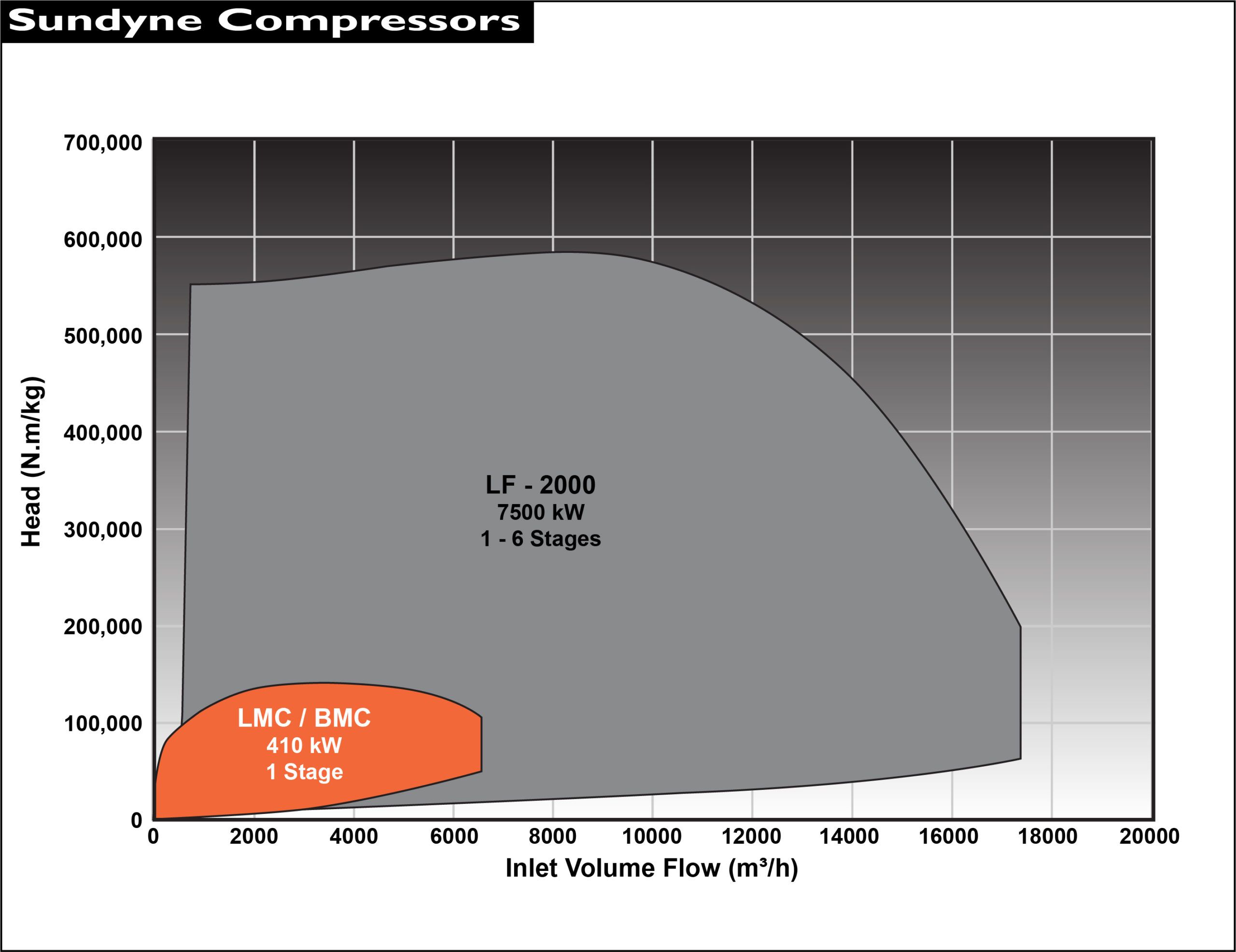

Metric 50 Hz

  • Maximum Flow                                     1,450 am³/hr
  • Maximum Speed                                   33,600 rpm @ 50Hz
  • Maximum Working Pressure                100 bar
  • Temperature Range                              -130 to 340°C
  • Maximum Motor Power                         335 kW
  • Hydro Test Pressure                             1.5 X Max working pressure
  • Minimum Casing Thickness                 15.88 mm and 19.05 mm
  • Corrosion Allowance                             3.18 mm
  • Impeller Clearance                               .76 to 1.27 mm
  • Shaft Diameter at Bearings                  38.1 mm
  • Mechanical Seal Sizes-Onboard          31.8 mm and 38.1 mm
  • Mechanical Seal Sizes-Inboard            38.1 mm
  • Mounting                                               Vertical (Mounting options)
  • Flanges                                                 ISO
  • Suction Flange                                      76.2 mm, 152.4 mm and 203.2 mm
  • Discharge Flange                                  50.8 mm, 101.6 mm and 152.4 mm
  • Gearbox Oil Temp Range                   49 to 82°C
  • Gearbox Lubricant                       ISO VG-46 General Purpose Oil
  • Gearbox Sump Capacity                     6.6 liters
  • Gearbox Lube System                         Pressurized
  • Gears                 Hardened and precision ground, helical and/or spur
  • Input/Idler Bearings   Deep groove, angular or solid journal as required
  • Output Bearings   Solid journal or tilt pad thrust and radial as required
  • Coupling                                          Standard flexible or spacer type

LMV 311 BUILD CODES

A

E

J

O (1)

W

API 610 BUILD (2)

S-5 (3)

A-7 (4)

S-8 (4)

N/A

S-9 (4)

Pump Case

C.S.

316 SS

C.S.

316 SS

Monel Clad C.S.

Case Studs

B-7

B-7

page17image58281728B-7 page17image58282880B-8M

K-Monel

Seal Housing

C.S.

316 SS

page17image58286720C.S. page17image58288448316 SS

Monel

Separator

316 SS

316 SS

316 SS

316 SS

Monel

Diffuser Insert

C.S.

316 SS

page17image58293248316 SS page17image58261696316 SS

Monel

Diffuser Cover

C.S.

316 SS

page17image58265536316 SS page17image58267264316 SS

Monel

Impeller

316 SS

316 SS

316 SS

316 SS

Monel

Impeller Bolt

316 SS

316 SS

page17image58273216316 SS page17image58717120316 SS

K-Monel

Inducer

316 SS

316 SS

316 SS

316 SS

Monel

Tab Washer

316 SS

316 SS

316 SS

316 SS

Monel

Shaft Sleeve

316 SS

316 SS

316 SS

17-4 PH

Monel

Throttle Bushing

316 SS

316 SS

page17image58384832316 SS page17image58385984316 SS

Monel

Metal Seal Parts

316 SS

page17image58388864316 SS page17image58390400316 SS

316 SS

Monel

Stationary Face

Binderless Carbon or Silicon Carbide

Rotating Face

page17image58363072Tungsten Carbide with Cobalt or Nickel Binderpage17image58364032

Shaft (all)

4140 Steel to 0° F, 15-5PH from 0° F to –240° F.

O-rings

As Required

  1. “O” build temperature range 0° to -240° F. Pressure capability is reduced due to strain hardened pump case studs. Contact Application Engineering.
  2. See Sundyne Corporation exceptions/clarifications to API 610, 11th edition for material requirements of pump parts.
  3. Impeller is upgraded to 316SS. A seal gland is not required because the seals mount in the seal housing. O-rings are used instead of a case gasket.
  4. A seal gland is not required because the seals mount in the seal housing. The pump shaft is AISI 4140 because it is not exposed to the fluid. O-rings are used instead of a case gasket.
