Marelli BB1 between bearings, axially split case with a single or double suction impeller, one stage double suction centrifugal pump

Designed for aggressive pump processes requiring robust casing and custom hydraulics.

Designed to heavy API-610 BB1 and ISO 13709 compliant standards for general refinery services, the PDH-LH pump features an axially split case with a single or double suction impeller, one stage of double suction and a centerline design for higher temperature services

  • Flows to 27,298 gpm (4,905 m³/hr)
  • Heads to 600 ft (200 m)
  • Suction Pressure 130 psi (9 bar)
  • Temperature Range -22 to 302°F (-30 to 150°C)

These precision engineered API/ISO 13709 process pumps meet rigorous engineering requirements for medium to high flow crude oil and petroleum products, pipelines and ship loading & unloading applications.

APPLICATIONS

  • Cooling water
  • Distillation
  • Sulfur recovery
  • Loading
  • Boiler feed boosting
  • Crude oil pipeline
  • Desalination
  • Water transfer

Standard Features and Benefits

  • API-610 10th Edition / ISO 13709 Full Compliance for reliability and accountability
  • Suitable with 60 Hz and 50 kW motors
  • Higher efficiencies due to a design with tangential discharge and a wide variety of hydraulics to match exact duty points
  • Labyrinth bearing seals to avoid external contamination and maximize seal and lubrication life
  • Highly maintainable and replaceable wear rings to reduce overall life cycle costs
  • Mechanical seal chamber API-682 3rd Edition.  Also complies to API-610 standards
  • Choice of multiple impellers in each hydraulic pump casing for optimum efficiency over a wide operating range
  • A variety of instrumentation options are available for monitoring all key operating perimeters (temperature, pressure, vibrations and more)

US 60 Hz

  • Heads to                                                  600 ft
  • Flows to                                                   27,298 gpm
  • Standards                                               API 610 BB1
  • Maximum Motor Power                           2,000 HP
  • Temperature Range                                -22 to 302°F
  • Maximum Case Working Pressure          218 psi
  • Maximum Suction Pressure                     130 psi
  • Differential Head                                      525 ft
  • Maximum Viscosity                  Consult Factory
  • Mounting Configuration         Horizontal side-side
  • Seal Configurations                 Packing with optional mechanical seals
  • Available Flanges                    PN16 FF/RF
  • Suction and Discharge Size      up to DN650

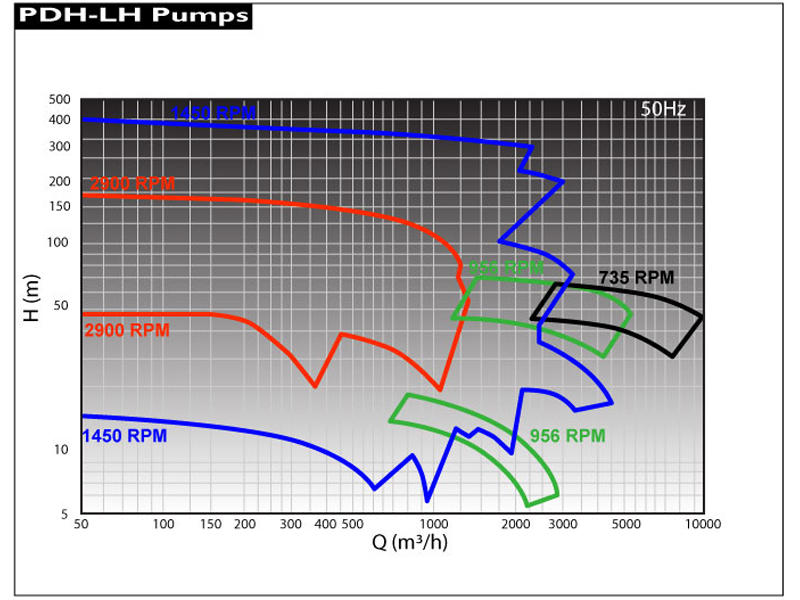

Metric 50 Hz

  • Heads to                                                  200 m
  • Flows to                                                   4,905 m3/hr
  • Standards                                                API 610
  • Maximum Motor Power                           1,500 kW
  • Temperature Range                                -30 to 150°C
  • Maximum Case Working Pressure         15 bar
  • Maximum Suction Pressure                     9 bar
  • Differential Head                                      160 m
  • Maximum Viscosity                  Consult factory
  • Mounting Configuration         Horizontal side-side
  • Seal Configurations        Packing with optional mechanical seals
  • Available Flanges           PN16 FF/RF
  • Suction and Discharge Size   up to DN650
PartS1S5S6S8C6A8D1
Pressure CasingCarbon Steel (A216 WCB)12% CHR316 AUSDuplex
ImpellerCast IronCarbon Steel12% CHR316 AUS12% CHR316 AUSDuplex
Wear RingsCast Iron12% CHR HardenedHard-faced 316 AUS12% CHR HardenedHard-faced 316 AUSHard-faced Duplex
ShaftCarbon SteelAISI 4140316 AUS12% CHR316 AUSDuplex
Bearing HousingCarbon Steel (A216 WCB)
Base GasketAUS, Spiral Wound316 AUS Spiral WoundAUS, Spiral Wound316 AUS, Spiral WoundDuplex SS Spiral Wound
