ANSIMAG K+ Sealless Magnetic Drive ETFE Lined Pump

Ansimag Sealless-Magnetic-Drive-Pump

No leaks for safe processing and handling of hazardous chemicals

ASME / ANSI B 73.3 standard chemical process sealless magnetic drive non-metallic centrifugal end suction pump.

This ASME / ANSI B73.3 standard pump covers a wide range of sizes and includes standard external dimensions so that pumps manufactured by other suppliers are dimensionally interchangeable with highly reliable ANSIMAG sealless magnetic drive pumps without changing piping or baseplates. Our sealless magnetic drive pumps meet standard design specifications and materials of construction.

  • Flows up to 675 GPM (153 m³/hr)
  • TDH up to 320 ft (97m)
  •  Temperature Range -20 to 250°F (-30 to 120°C)
    • Low System Temperature Option -120°F to 250°F (-84°C to 120°C)

The K Plus is also available in a low system temperature configuration and is ideal for most corrosive or acidic applications in the chemical, specialty chemical and steel industries.


Chemical Processing

  • Chlor-Alkali
  • Pesticides
  • Insecticides
  • Herbicides
  • Fertilizer

Hydrocarbon Processing

  • Sour water
  • Sulfuric acid
  • Benzene
  • Xylene
  • Toluene


  • Produced water
  • LACT

Aquatic and Marine

  • Seawater
  • Caustic

Battery Manufacturing

  • Sulfuric acid
  • Potassium hydroxide


  • Bio-diesel
  • Ethanol

Food and Beverage

  • Fragrances


  • Sodium cyanide
  • Sulfuric acid
  • Hydrochloric acid


  • Silicon oil (Heat transfer fluid)

Pulp and Paper

  • Chlorine
  • Sulfuric Acid

Semiconductor Manufacturing

  • Hydrofluoric acid
  • Sulfuric acid

Steel Finishing, Pickling, Etching and Plating

  • Hydrochloric acid

Water and Wastewater Treatment

  • Sodium hypochlorite
  • Sodium hydroxide
  • Sulfuric acid
  • Ferric Chloride

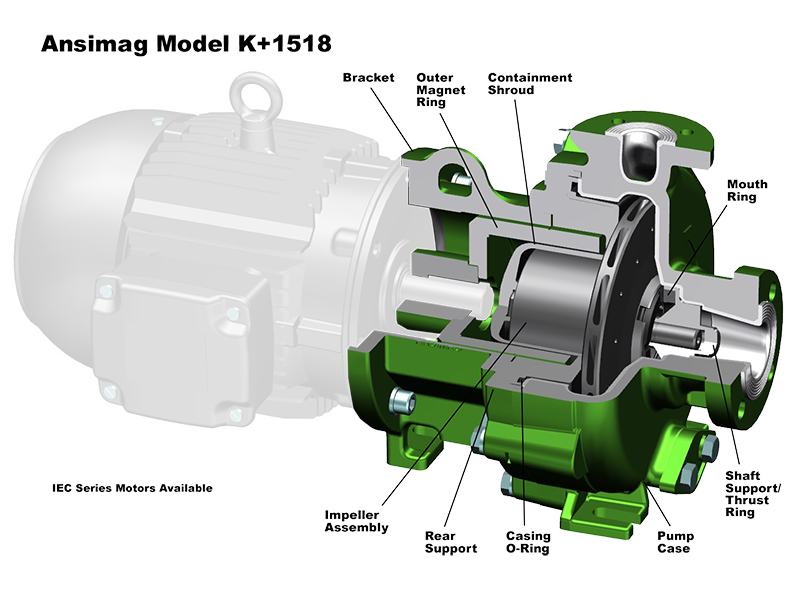

Proven to be reliable, safe, compact and efficient, ANSIMAG sealless magnetic drive ETFE lined pumps provide a number of operational benefits:

  • Magnetic Drive: this patented technology hermetically seals the inner magnets, isolating them from process fluid, which maintains magnet integrity for the life of the unit.
  • Close Coupled Design: leverages off-the-shelf NEMA C Face or IEC-B5 Flange motors, and still provides a small footprint, quiet operation and low maintenance.
  • Corrosion Protection: Powder Coat exterior is more durable and chemically resistant than Epoxy based paints.
  • Easy Service:  ANSIMAG Back Pull Out design enables the Drive End to be serviced without breaking into the Wet End.
  • Sealless Containment:  Lined Kevlar Fiber/Epoxy construction provides unsurpassed pressure handling capability.
  • Radial Thrust:  All ANSIMAG pumps feature a fully-supported shaft to eliminate radial shaft deflection at low flow operating conditions.
  • Zero Leakage:  A single, fully-contained O-ring eliminates possible leakage.
  • Chemically Resistant Lining:  Carbon Fiber reinforced ETFE is resistant to most chemicals.
  • Durable Construction: Ductile iron exterior is designed for heavy-duty chemical applications.
  • Axial Thrust Washers: increase the allowable operating range over thrust balanced methods. This increases the pump’s reliability through a positive thrust surface that is unaffected by cavitation, solids or transient suction conditions.
  • Simple Sealless Design: Consisting of only 9 wetted parts, ANSIMAG pumps can be quickly and easily repaired in the field.  Routine maintenance or repairs can be performed without the need for special tools or training.
  • Replaceable Impeller:  a single-piece replaceable impeller is attached to the inner magnet drive via ANSIMAG’s patented tongue & groove system.  The separation provides a cost effective approach to warehouse spare parts management and re-rating operations.
  • Run-for-Life Bushing:  Silicon Carbide bushings provide near maintenance-free operation for the life of the pump.
  • Fully-Encapsulated Inner Drive: provides unsurpassed resistance to chemical attack.

US 60 Hz

  • Heads to                                                  320 ft
  • Flows to                                                   675 gpm
  • Maximum Motor Power                           30 HP
  • Temperature Range                                -20 to 250°F
  • Maximum Case Working Pressure          285 psi
  • Hydrotest Pressure                                  430 psi
  • Maximum Viscosity                                  900 SSU
  • Solids Range                                            to 20%
  • Motor Details                                           NEMA IEC
  • Mounting Configuration                           Horizontal close and long coupled
  • Dimensional Standards                         ASME / ANSI B 73.3
  • Number of Available Hydraulics         8
  • Available Flanges                                    ASME / ANSI Class 150 RF

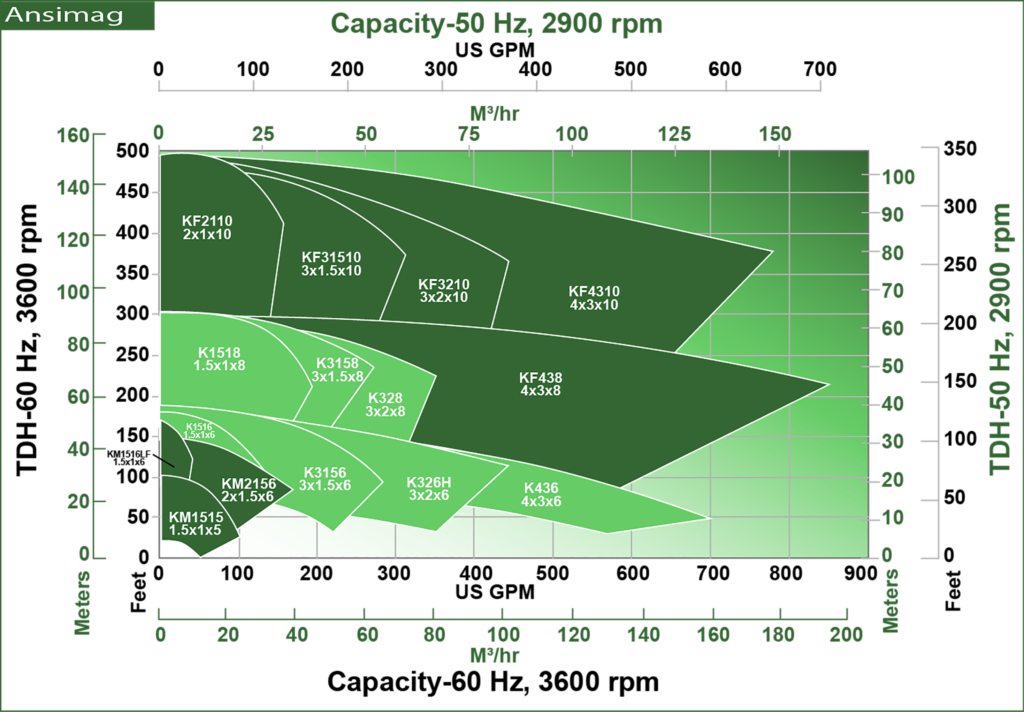

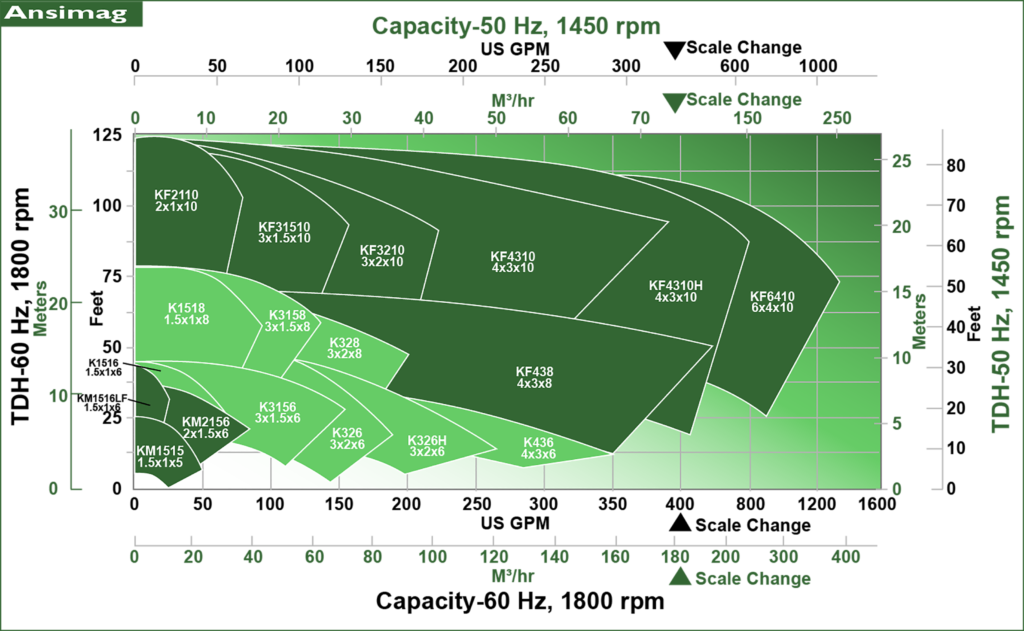

Metric 50 Hz

  • Heads to                                                  67 m
  • Flows to                                                   125 m3/hr
  • Maximum Motor Power                           22 kW
  • Temperature Range                                -30 to 120°C
  • Maximum Case Working Pressure         19.3 kg/cm2
  • Hydrotest Pressure                               30 kg/cm2
  • Maximum Viscosity                                 200 centistokes
  • Motor Details                                         NEMA IEC
  • Solids Range                                           to 20%
  • Mounting Configuration                           Horizontal close and long coupled
  • Dimensional Standards                        ISO 2858, JIS B8313
  • Number of available hydraulics.         8
  • Available Flanges
  • Carbon Fiber Reinforced ETFE
  • Glass Fiber Reinforced PFA (impeller parts)
  • ETFE or PFA linded ductile iron (casing)


Installed in the Motor Control Center (MCC), a power monitor measures the power required to operate the pump.  By setting High and Low trip points, the power monitor is the perfect solution for protecting your pump from:

  • Dry running
  • Low flow operation
  • High flow operation
  • Severe cavitation
  • Magnet de-coupling
Motor Control Center


Long coupled configurations conform to ANSI B73.3 dimensions for easy replacement of mechanically sealed pumps (utilizing same baseplate, coupling, guard and motor).


ASME B73.3 compliant back-up to control or contain leakage in the event primary pressure containment is breached.

Solids Handling

With its generous internal clearances, ANISMAG pumps are designed to handle liquids with solids up to 20%+ w/w, 1/8 inch diameter.

Unlike competitive designs, ANSIMAG pumps do not rely on close fitting internally wetted Silicon Carbide wear rings (held in place with non-metallic snap rings) that can trap solids or lock-up the pump.

Frequently Handled Solids:

  • Inorganic Salts
  • Fine Sand
  • Caustic Precipitates
  • TiO2(Paints & Coatings)
  • Slag (Steel Pickeling)
  • Carbon Black
Solids Handling


Solid state device for detecting liquid in the event of a leak in the primary containment shell.


Fitting an ANSIMAG pump with Carbon radial bushings reduces the coefficient of friction with the pump shaft extending the life of the pump during process upset or dry run operating conditions.


Baseplates pre-engineered, chemically resistant polymer concrete bases provide a superior foundation to channel steel alternatives.
